COMMON PARTS - DPL

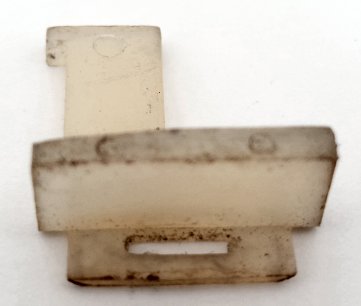

Called a Plunger, Switch, this plunger was fitted to the Switch No. 5A-1 and 5A-2.  It is a mounting that a Label No. 358 would be fitted to.

1/DPL/372 - non-locking.
2/DPL/372 - locking.

Made of Nylon.

Ericsson Part No's N92190 and N92191.

Used with Part 1/DPL/379 on a Telephone No. 710 connected as a non-multiple extension  on  an HES 3 or 4 system.

Extension part (pictured left).

Diagram Q420 and Q550 refer.


Used with Part 1/DPL/378 on a Telephone No. 710 connected as a non-multiple extension  on  an HES 3 or 4 system.

Exchange line part (pictured right).

Diagram Q420 and Q550 refer.


A plate used to support two Jack's No. 84 on switchboards.

Drawing - DPL695.

1/DPL/697

A plate used to hold one jack.

Drawing - DPL697.



A plate used to hold one Jack No. 84 on switchboards.

Drawing - DPL719.



1/DPL/1002

A plunger with a spring attached.  These were used when Switches No. 5A-4 were installed in a  Telephone No. 740 or 746.


Called a Plate, Finger, this was a dial finger plate used on the Dials, Automatic No. 21CA.

Made in all the colours for the Telephone No. 706.

Drawing - 91359.

Called a Plate, Stop, this was used on the Switch No. 5A-1 and 5A-2.


Transparent plastic dial finger plate.  There are two types, the early type is fixed by a chamfered screw (Part 1/DSC/105) whilst the later type is fixed with a flat headed screw.

1/DPL/2145 - Clear plastic, used on the Dials, Automatic No. 21FA Clear (Drawing - 92526).

4/DPL/2145 - Transparent grey, used on Dials, Automatic No. 30FA (Drawing - 92808).

3/DPL/2145 - Clear plastic, used on the Dials, Automatic No. 21FA Clear (Drawing - 92526).

4/DPL/2145 - Transparent grey, used on Dials, Automatic No. 30FA (Drawing - 92808).
