Label No. 1 Used with Relay No. 17.
Colour - Green.
|
|
Label No. 2 Used with Relay No. 18.
Colours - Green and red.
|
|
Label No. 3 Used on Broad, Trunk
Test of U link type - Loaded terminals.
Colours - Black, Green, Green/Yellow and Yellow.
|
|
Label No. 4 Used on Broad, Trunk
Test of U link type - Superimposed Circuits.
Colour - Black.
|
|
Label No. 5 Used on Broad, Trunk
Test of U link type - Battery tablet.
Colour - Black.
|
|
Label No. 6 Used with Jacks No.
520AN.
|
|
Label No. 7 Used with jacks No.
520AP.
|
|
Label No. 8 Used with jacks No.
505AN.
|
|
Label No. 9 Used with jacks 505AT.
|
|
Label No. 10 Used with jacks No.
520AN.
|
|
Label No. 11 Used with Jacks No.
520AN.
|
|
Label No. 12 Used with Jacks No.
820AN.
|
|
Label No. 13 Jack label.
|
|
Label No. 14 Used with Indicators
No. 1A.
|
|
Label No. 15 Name plate for
Indicator No. 2A.
|
|
Label No. 16 Number plate for
Indicator No. 2A.
|
|
Label No. 17 Used on trunk battery
tablets.
|
|
Label No. 18 Used with jacks No.
505AO.
|
|
Label No. 19 Name plate used on side
pillars of concentrator switchboards.
|
|
Label No. 20 Used on pole test
boxes, battery racks and telegraph test boards.
|
|
Label No. 21 Used on Cases,
Distribution 160 and 240 wire.
|
|
Label No. 22 Used on Telegraph test
boards.
|
|
Label No. 23 Battery label.
|
|
Label No. 24 Oval, Brass, number
plate.
|
|
Label No. 25 Oval number plate.
Colours - Brass and Silvered.
|
|
Label No. 26 Oval, Brass, number
plate.
|
|
Label No. 27 Used on Strip, fanning
No. 1 and Cases, Distribution 20, 40 or 80 wire.
|
|
Label No. 28 Used with Jacks No.
520AO and 520AR.
|
|
Label No. 36 Used on Fuse tablet
frame.
|
|
Label No. 37 Used with Frames, Label
1 or 5 trunk.
Colours - Green and White.
|
|
Label No. 38 Crescent for trunk
switchboard sections.
Colour - Black.
|
|
Label No. 39 Used on Switches 2-way.
No. 1 or 3.
Engraved "DAY" and "NIGHT".
Colour - Black.
|
|
Label No. 41A White moulded label
with metal fixing pin at the rear.
Label used on Jack
fields.
Size - 6mm x 10mm x 8mm. |
|
Label No. 42 Used on Switchboard
C.B. 935 (3+7) and Secondary Cell rack.
Dimensions - 2" x 1".
|
|
Label No. 43 Aluminium instruction
label used on the front of Transmitter No. 1. Included is a paper
dummy that fitted underneath the label.
No. 43 - Used in CB areas on DEL and Extensions on Telephone Nos. 2, 10,
121CB and 150CB.
No. 43A - Used in CB areas on Call Offices on Telephone No. 115, 115A
and 131CB.
No. 43B - Used on Private Wires on Telephone Nos. 2, 10 and 154.
No. 43C - Used in Automatic areas on Telephone No. 121L, 150L and 156.
Click here for more information |
|
Label No. 44 White, labels used for
numbering cord circuits on switchboards and keys on test desks.
Dimensions - 3/8" diameter.
Colour - White.
|
|
Label No. 45 For use on stile
strips, number plate type 18.
|
|
Label No. 46 Used on keyboards and
old form designation strips.
Dimensions - 1.5" x 5/8".
Colour - White.
|
|
Label No. 50 Used on Cut-Out No. 3.
Colour - Whaite.
|
|
Label No. 51 Used on Fuse, Mounting
N0. 1001.
Colour - Black.
|
|
Label No. 53B & C B - Used on small
CBS exchanges.
C - Used on Magneto exchanges.
Made from Aluminium or silvered Brass.
|
|
Label No. 54 Used on Tablet, Teak
No. 180 test hole.
Colour - Black.
|
|
Label No. 55 Used on Jack Test No. 1
or Fuse Mountings No. 4002.
Colours - Brass, Green, Green/Yellow and Yellow.
|
|
Label No. 56 Exchange number label.
Used on Switchboards, CBS and Magneto.
Colour - Brass.
|
|
Label No. 57 Used on Keyboards with
28 cords
Colour - White.
|
|
Label No. 58 Used on Keyboards with
26 cords
Colour - White.
|
|
Label No. 59 Used on Indicators No.
100A, 1800A and 2200A and Protectors F&T No. 1601.
Fitted with two pins.
Colours - Black and White.
|
|
Label No. 60 Used on Jacks No.
510AP and Strips, Designation No. 8.
Also used on Switchboards CBS 934 & CB 935 (1+3, 2+6 and 3+9) and
engraved appropriately.
Colour - White.
|
|
Label No. 61 Used on old style
designation strips on CB Switchboards and Switchboard
C.B. 935 (3+7).
Colours - Green, White and Yellow.
|
|
Label No. 62 Used with Night Jacks
on Switchboards CBS and Magneto.
Colour - White.
Size - 1" x 1.25".
|
|
Label No. 65
Exchange number label for Telephone No's 16 or 18.
Coloured - white
Size - 1½" x 5/8".
|
|
Label No. 66 Used with Night Jacks
on Switchboards CB and Magneto.
Colour - Black.
Size - 1" x 1" with 0.5" hole.
|
|
Label No. 67 Used with No. 25E and
25F.
Colour - White.
|
|
Label No. 68 Used with Keys No. 25D
and 25G.
Colours - Green and White.
|
|
Label No. 69 Used with Keys No. 25C
and 25H.
Colour - White.
Size - 1" x 0.25"
|
|
Label No. 70 Used on Switch 6-point,
2 position.
Colour - Black.
|
|
Label No. 72 Used on Indicator Jacks
No. 102AN, 205AN etc.
Colours - Green, Orange, Red, White and Yellow.
Size - 1" x 3/8".
|
|
Label No. 74 Used with Holder for
Labels No. 74.
Colour - White.
|
|
Label No. 75 Used with Holders for
Labels No. 75.
Colour - White.
|
|
Label No. 77 Used with Indicators
No. 400C, 500B etc.
Made of blackened Brass.
Black.
|
|
Label No. 78 Aluminium instruction
label used on the front of Transmitter No. 2. Included a paper
dummy that fitted underneath the label.
Used on Telephone Nos. 4, 150 and 154.
No. 78 - Used in LB (C.B.S.) areas on Telephone Nos. 4 and 150.
No. 78D - Used in Automatic areas on Telephone Nos. 3, 4, 11, 150 and 154.
No. 78E - Used in Director areas on Telephone Nos. 4 and 150.
No. 78F - Used in Magneto areas on Telephone Nos. 3, 4, 11 and 156.
Click here for more information
|
|
Label No. 81 Route label.
|
|
Label No. 82 Designation strip
label. Numerous sizes and colours.
Dimensions
No. 82 - 19mm x 13mm x 1mm.
No. 82C - 14mm x 13mm x 1mm.
No. 82F - 14mm x 13mm x 1mm.
No. 82G - 27mm x 13mm x 1mm.
No. 82H -13mm x 13mm x 1mm.
No. 82J - 25mm x 13mm x 1mm.
|
|
|
|
Centre |
|
Label No. 83 Designation strip
label. Numerous sizes and colours.
Dimensions - 10mm x 8mm x 2mm.
|
|
|
|
Centre |
|
Label No. 84 Designation strip
label. Numerous sizes and colours.
|
|
Label No. 86A Plastic label moulded
on a metal pin.
Used on switchboard jack strips. Jack No. 305BN
etc.
Size - 1/2" x 3/8" x 5/16".
Originally blackened Brass.
|
|
Label No. 87 Used with jacks No.
505BN.
Size - 5/16" x 7/16".
Originally blackened Brass.
|
|
Label No. 88 and 88A For Strips, Designation
No. 2 or 22.
Dimensions
No. 88 - 13mm x 11mm x 2mm. Type A.
No. 88 Centre - 13mm x 11mm x 2mm. Type B
No. 88A - 25mm x 11mm x 2mm. Type A.
No. 88A Centre - 25mm x 11mm x 2mm. Type B
|
|
|
|
Centre |
|
Label No. 91
|
|
Label No. 92
|
|
Label No. 93
|
|
Label No. 94 Used with Indicators
No. 400 or 500.
|
|
Label No. 95
|
|
Label No. 96
|
|
Label No. 97 Paper disc used on Dial,
Automatic No. 1 and 2 on exchange line circuits.
Label 97A is identical except it is used on extension circuits.
Diagram - A.T. 733.
|
|
Label No. 98 Used with Cap, Lamp No.
2 in No. 1 exchanges.
|
|
Label No. 99 Used with Cap, Lamp No.
2 in No. 10 exchanges. |
|
Label No. 100 Used with Indicators
No. 1400A, NT No/s 10, 12 or 1001. |
|
Label No. 101 Used with Peg No. 15
on Jacks Switchboard No. 4, 10 or 19. Colours - Green, Orange, Red and
White. |
|
Label No. 102 Paper disc used with
Indicators No. 1500, 1600, 1900, 2000 or NT No. 1002. |
|
Label No. 103 Un-numbered and used
with Sockets, Number, NT No. 1 or 2. |
|
Label No. 105 Plastic label moulded
on a metal pin. Used on switchboard jack strips and engraved
appropriately.
Size 11/16" x 5/16" x 5/16".
Originally blackened Brass.
|
|
Label No. 108 A black fibre tube
used for numbering operators instrument. Fits on cord.
|
|
Label No. 111 Used for labelling fee
junction on small CBS switchboards.
|
|
Label No. 112 Used on stile strips
on No. 1 CB Switchboards.
Size - 1" x 9/16".
Colour - White.
|
|
Label No. 113 Number ring, Enamelled
Copper, marked 0, 9, 8, 7 to1. Used on Dials Automatic No. 1 and 2. |
|
Label No. 114 Aluminium instruction
label for miscellaneous instruments for private wires.
|
|
Label No. 115 Used on Indicator
Jacks No. 305BN or 310BN.
|
|
Label No. 116 Blackened Brass label
used on Meters No. 1A, 2A, 2B, 3A, 3B, 4A, 4B, 7A, 8A or 9A.
|
|
Label No. 117 Adhesive paper label used on Indicators
N.T. Nos. 10 and 12 or 1001.
|
|
Label No. 118 Paper disc used on
Dial, Automatic No. 3 on exchange line circuits.
Label No. 118A is identical except it is used on extension circuits.
Diagram - A.T. 733.
|
|
Label No. 119 Paper disc on 1"
diameter used on Dial Automatic No. 5 on exchange and extension
circuits.
Diagram - A.T. 733.
|
|
Label No. 119A Paper disc on white
paper of 7331 and 7/16" diameter used on Dial Automatic No. 6 on
exchange and extension circuits.
Diagram - A.T. 733.
|
|
Label No. 120 5/8" diameter disc,
1/8" thick.
Plasticised Cellulose Acetate, opaque or Plasticised Vinyl Chloride
Copolymer (VYBAK or COBEX), white or Black, polished on one side.
Drawing - 90814 (Dated 1956).
|
|
Label No. 122 Label used on all
sizes of Cases, Distribution.
Size - 6" x 2".
|
|
Label No. 123 Used with Jacks No.
550BN.
Colour - White.
Size - 5/8" x 3/8".
|
|
Label No. 124 Number ring.
Enamelled copper marked 0, 9, 8, 7 to 1.
For Dial, Automatic No. 3.
|
|
Label No. 125 Number ring.
Enamelled copper marked 0, 9, 8, 7 to 1.
For Dial, Automatic No. 6.
|
|
Label No. 128 Used on Switch, NT 5.
|
|
Label No. 129 Circular, moulded
insert for use on the top of plunger type Key No. 5.
Colours
Black, red, white and green.
|
|
Label No. 131 Used on handle of
Transmitters, F.A. Nos. 3, 6 or 7.
Printed with the word "PULL". |
|
Label No. 132 For labelling MDF bars
with Fuse-mountings No. 4001.
|
|
Label No. 133 For labelling MDF bars
with Fuse-mountings No. 4002.
|
|
Label No. 134 Used with Tablet,
Trunk Test 18cct.
|
|
Label No. 135 Used with Tablet,
Trunk Test 18cct.
|
|
Label No. 136 Used on Panel,
Charging No. 4.
Colour - Black.
|
|
Label No. 138 Paper disc used on
Dials, Automatic, No's 8, 9, 10 and 11.
No. 138 - Used on Dial No. 10LA, Marks 234, 235 and 235A in Director
areas. Superseded by Label No. 160A.
No. 138A - Used on Dial No. 10L, Mark 234, 235 and 235A. Superseded by
Label No. 160A.
No. 138B - Used on Dials No's 8 and 10, Mark 234, 235 and 235A and also
Dials No's 9 and 11 mark 234 in Non-Director areas.
Superseded by
Label No. 160B.
Click here for more information
|
|
Label No. 139 Circular enamelled
iron sign used on Posts, F.A. Brown.
Wording was as follows:-
"FIRE CALL.
BREAK GLASS, PULL HANDLE.
WHEN BUZZER STOPS LIFT RECR. FROM HOOK AND LISTEN.
GIVE ADDRESS OF FIRE.
SPEAK LOUDLY"
Size - 8.75" X 5.5". Drawing - 8356. |
|
Label No. 140 Enamelled iron sign
used on Posts, F.A. Brown.
Wording was as follows:-
"FIRE CALL.
BREAK GLASS, PULL KNOB, WAIT FOR ENGINE".
Size - 8.5" x 5.1". |
|
Label No. 141 Enamelled iron sign
used on Posts, F.A. Brown.
Wording was as follows:-
"FIRE CALL.
BREAK GLASS, PULL KNOB, WAIT FOR ENGINE".
Size - 8.75" x 5.5". |
|
Label No. 142 Enamelled iron sign
used with Boxes, Wall, F.A. Type G or Posts, with Base, F.A. Type G.
Text:-
"IN CASE OF FIRE,
BREAK GLASS, PULL HANDLE, WAIT FOR ENGINE".
Size - 4" x 6". |
|
Label No. 143 Used on Boxes, Fire
Alarm, No. 1 and 2.
Made from Enamelled Iron.
Text - IN CASE OF FIRE, BREAK GLASS - TURN KEY - OPEN DOOR - PULL
DOWN HOOK - WAIT FOR ENGINE"
|
|
Label No. 144 Used on Boxes, Fire
Alarm, No. 4.
Made from Enamelled Iron.
Text - IN CASE OF FIRE, BREAK GLASS - OPEN DOOR - PULL DOWN LEVER -
LET GO - AWAIT ENGINE. PENALTY FOR FALSE ALARM 20s OR 3 MONTHS
IMPRISONMENT"
|
|
Label No. 147 3" Oval, enamelled
Iron labels used for numbering telephone cabinets in the London area.
Label text is 1, 2, 3, 4....
|
|
Label No. 148 Enamelled circular
enamelled iron sign used on Posts, F.A. Brown.
Text:-
"FIRE CALL.
BREAK GLASS, PULL KNOB, WAIT FOR ENGINE".
Diameter - 7.5". Drawing - 8407. |
|
Label No. 149 Number plate used in Dials
No. 8F, 9F, 10F and 11F (Non Director exchange areas)
Enamel on copper with black figures. Drawing -
62527.
|
|
Label No. 150 Number plate used in Dials
No. 10L and 11L (Director exchange areas)
Enamel on copper with black letters and red figures. Earlier labels had the word
'Operator' printed between the O and the 0. Drawing -
62528.
|
|
Label No. 153 Used on Protectors and
HC 40B.
Colour - Black.
|
|
Label No. 155 Number plate used in Dials
No. 10BA and 11BA (Brighton Area).
Enamel on copper with exchange names printed around the numbers.
Made obsolete in 1950. Drawing
- 62529. Click here for more information.
|
|
Label No. 158 Enamelled iron sign
used on Posts, F.A. No. 3.
Wording was as follows:-
"IN CASE OF FIRE,
BREAK GLASS, PULL HANDLE DOWN, LET GO, WAIT FOR ENGINE".
Size - 7.75" x 2.75".
|
|
Label No. 159 Circular paper label
used on Dials, Automatic,
Dummy, No. 1
No. 159A - Used in CB and CBS areas.
No. 159B - Used in Magneto Call and Clear areas.
No. 159C - Used in Magneto Call and Auto-clear areas.
Click here for more information
|
|
Label No. 160 Circular paper label
used on dials from Dial, Automatic No. 10, Marks 236 and 236A onwards and Dials, Automatic,
Dummy.
Click here for more information
|
|
Label No. 162 This is a small
diameter paper tube used for identifying circuits at multiple wiring
points. The circuit number is written on the tube and the tube is
then inserted on to the wire.
|
|
Label No. 187
A Red coloured, circular plastic
plate, that fits behind a Press-button, G, Brass, with watertight
barrel.
Part No. 1/SCA/1 is a stainless steel pressing that is fitted over the press-button to cover up the
brass flange. Part
No. 1/SCA/1 includes two Screws for Wood, Brass, Rd. Hd., 1 in.,
Size 4.
Used for emergency call circuits on Pre 1936 Coin Box installations.
Diameter - 3" external and 1¼"
internal.
Engraved "EMERGENCY CALL"
Drawing - 62568 (Dated 1932).
|
|
Label No. 193 Black enameled, mild
steel plate for fitting to the top of each vertical of an MDF to
indicate incoming cable code.
|
|
Label No. 197 Enlarged number ring
that fits around Dial No's 8, 10 and 12.
Used by customers with poor eyesight.
Label No. 197F (Figures only)
Label No. 197L (Figures and
Letters) and
rear view
Label No. 197B (Brighton area)
Click here for more information
Drawing - CD76.
|
|
Label No. 198 Similar to No. 193 but
used on combined main and intermediate distribution frames to indicate
the finish of the IDF portion.
|
|
Label No. 201 Enameled Iron with
white lettering on a red background.
Message on label states:-
"TO CALL, PULL AND HOLD DOOR OPEN.
POLICE, FIRE, AMBULANCE
FOR PUBLIC USE"
Used with Posts, P.A. No. 1. |
|
Label No. 206 Enamelled Brass.
Message on label states:-
"NOT IN USE"
Used with Posts, P.A. No. 1. As for Label No. 201. |
|
Label No. 231 Emergency call label fitted to Post 1936
telephone call office installations in CB areas. It is a Black,
engraved, label that is located in
the Frame, Notice, No. 31 and has a Press Button G fitted centrally.
Part No. 1/SCA/1 is fitted over the press-button to cover up the
brass flange. Part
No. 1/SCA/1 includes two Screws for Wood, Brass, Rd. Hd., 1 in.,
Size 4.
Click here for more information.
Drawing - 60880.
|
|

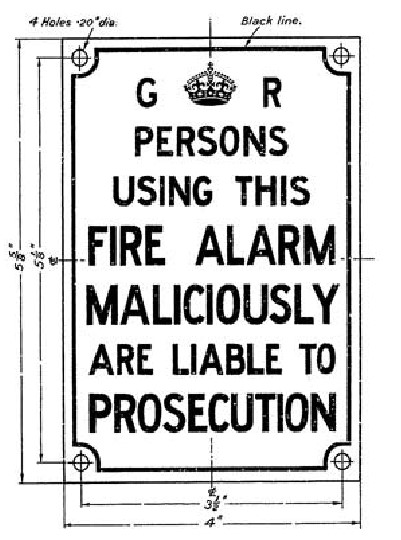

Label No. 232 Stove enamelled fire
alarm notice. White with black characters.
Made from 18swg iron.
Drawing - 60930 (Dated 1934).
|
|
Label No. 235 White, plastic label,
polished on one side.
Size - 34mm x 8mm x 1.2mm,
|
|
Label No. 236 White, plastic label,
polished on one side.
Size - 9mm x 5.6mm x 0.8mm.
|
|
Label No. 238 White, plastic label,
polished on one side.
Size - 32mm x 13mm x 1.2mm.
|
|
Label No. 2 42
White and un-engraved. For indicating name
of telephone exch. or works, on Indicators, Visual-control
|
|
Label No. 243
For use with Pegs No. 54 to indicate items needing attention, or
items on which delay has occurred, on Indicators, Visual-control.
Colours - Blue,
Buff, Red and
White.
|
|
Label No. 244 Labels used on Block
Terminal No. 8.
Variants A to D.
|
|
Label No. 245 Labels used on Block
Terminal No. 9.
Variants A to B.
|
|
Label No. 246 Label used on Block
Terminal No. 12.
Variants A to B.
|
|
Label No. 247 Label used on Block
Terminal No. 13.
Variants A to B.
|
|
Label No. 248 Label used on Block
Terminal No. 14.
Variants A to B.
|
|
Label No. 249 Label used on Block
Terminal No. 12.
Variants A to B.
|
|
Label No. 250 Label used on Block
Terminal No. 14.
Variants A to B.
|
|
Label No. 252 Black coloured label
used on certain 300 type telephones. Fits under the press button on the
front of the case.
Made of aluminium.
Coloured black with anodised silver text.
The table to the right shows all variants. As the 300 type
telephone was produced with provision for one, two or three buttons then the
table shows the position of the label text. The Labels are fixed to
the case with two screws, Part 1/DSC/151 (SC special 6BA). On wall
telephones two nuts, Part 1/DNU/35 (nut, circular) are also used.
These items are normally supplied on the case.
Click here for more information Diagram -
N620. Drawing - 62519. |
|
Left |
Centre |
Right |
A |
- |
RING EXTENSION |
- |
AA |
BELL
ON |
RECALL |
BELL
OFF |
AB |
EXTENSION
1 |
CALL
MAIN |
EXTENSION
2 |
AC |
RING
EXTENSION |
CALL
MAIN |
CALL
EXCHANGE |
AD |
BELL
OFF |
- |
BELL
ON |
B |
1 |
RING EXTENSION
2 |
3 |
C |
BELL
ON |
- |
BELL
OFF |
D |
SECRET |
- |
NORMAL |
E |
- |
CALL MAIN |
- |
F |
BELL
ON |
CALL
MAIN |
BELL
OFF |
G |
LINE 1 |
- |
LINE 2 |
H |
ENQUIRY
LINE |
RECALL
OPERATOR |
NORMAL |
J |
- |
RECALL |
- |
K |
LINE
1 |
RECALL
OPERATOR |
LINE
2 |
L |
ENQUIRY LINE |
- |
NORMAL |
M |
LAMP
ON |
- |
LAMP
OFF |
P |
SECRET |
RING EXTENSION |
NORMAL |
Q |
- |
CALL EXCHANGE |
- |
R |
SCRAMBLE |
- |
NORMAL |
T |
CALL MAIN |
- |
RECALL |
U |
CALL
MAIN |
- |
CALL
EXCHANGE |
V |
EXTENSION
1 |
CALL
EXCHANGE |
EXTENSION
2 |
W |
BELL
ON |
CALL
EXCHANGE |
BELL
OFF |
X |
SCRAMBLE |
RECALL |
NORMAL |
Y |
SCRAMBLE |
- |
HOLD
SCRAMBLER |
Z |
SCRAMBLE |
RECALL |
HOLD
SCRAMBLER |
|
Label No. 255
Used on Cabinets, Telephone .
Made of Laminated Bakelite with black letters on a white background.
Worded :-
"TO OPEN DOOR IN AN EMERGENCY
Turn the catch at the end, press on door
to get it clear of the sides.
Then pull"
Dimensions - 5.7" x 2.1".
Drawing - 62525.
|
|
Label No. 256
Worded "TO OPEN DOOR IN AN EMERGENCY . . . "
Used on Cabinets, Telephone
fitted with Bolt, D60856.
|
|
Label No. 271
White paper label used on Strips, Designation.
Size - 254mm x 11mm x 0.79mm.
|
|
Label No. 282 Grey enameled, mild
steel plate and bracket for fixing to the bottom vertical members of an
MDF to indicate vertical numbers.
|
|
Label No. 292 These are used to
identify cash containers, that are used in public coin boxes.
Made of plastic.
|
|
Label No. 295 White label used on
Units, Switchboards, P/A.....
1.5" x 0.5".
|
|
Label No. 301 Worded "PULL TO OPEN".
This label was used on folding door call office cabinets.
Drawing - 63780.
|
|
Label No. 304 Number ring with
black figures 1 to 0.
Used on Dials, Auto, No's 12FA,
13FA,
14FA,
15FT3,
15FT4, 16FT3,
and
16FT4.
Enamel on copper. Used with a rubber spacer. Drawing -
90156. Specification - S409.
|
|
Label No. 305
Number ring with red figures and black letters. e.g.
ABC,
DEF.
Used on Dials, Auto, No's 12L, 13L, 14L, 15L, 16L, 19L and 20L.
Enamel on copper. Used with a rubber spacer.
Superseded by Label No. 314. Drawing -
90157.
|
|
Label No. 306 5.25" x 2.25". White
with red lettering "Do not each insert coins until operator asks you".
For use on Boxes, C.C. No. 16B or 16C, complete (for postpayment areas
only).
Includes - 4 screws. 4BA x 7/32" Csk. Drawing - 90148.
|
|
Label No. 314 Number ring with
black figures 1 to 0.
Used on Dials, Auto, No's 12FA, 13FA, 14FA, 15FA, 16FA, 19FA and 20FA.
Plastic type (Diakon LA Clear) - no spacer required. Drawing
- 90243.
|
|
Label No. 315
Number ring with red figures and black letters. e.g.
ABC,
DEF.
Used on Dials, Auto, No's 12L, 13L, 14L, 15L, 16L, 19L and 20L.
Plastic type (Diakon LA Clear) - no spacer required. Drawing -
90244. Specification - M291.
|
|
Label No. 316 Number plate used on
Dial No. 17LA. |
|
Label No. 332C to K
Aluminium, anodised, labels used on the press buttons on a Bellset No.
39 or 44.
C - EXT 2, left hand - Drawing -
90712
E - Blank, left hand - Drawing -
90713.
F - Blank, right hand - Drawing - 90713.
G - EXT 1, right hand - Drawing -
90714.
H - EXT 1, left hand - Drawing - 90714.
J - CALL EXCH, left hand - Drawing -
90715.
K - RECALL, right hand - Drawing - 90715.
Made by GEC. |
|
Label No. 333
Aluminium, anodised, label used on the control lever on a Bellset No. 39
or 44.
Made by GEC.
Drawing - 90716.
|
|
Label No. 347 Coin denomination
plate. Fitted to Boxes , Coin Collecting No. 700 & No. 705.
|
|
Label No. 349 Number ring with
black coloured figures 0 to 1.
Used in Dials
No. 10F and 11F (Non Director exchange areas)
Plastic type with numbers only. Plastic is very thin. Introduced
1956. Made from Diakon LA Clear, with white Styrenated Alkyd backing
paint applied on the underside of the label. Drawing - 90561. |
|
Label No. 350
Number ring with figures and letters. e.g.
ABC,
DEF.
Letters are coloured Black and all figures are Red 538.
Used in Dials
No. 10L and 11L (Director exchange areas)
Plastic type with letters and numbers. Plastic is very thin.
Introduced 1956. Made from Diakon LA Clear, with white Styrenated
Alkyd backing paint applied on the underside of the label. Drawing -
90562.
|
|
Label No. 352 Label of similar
pattern to Label No. 252 except that this label is made of plastic and
is engraved in the the Factories Department to order.
|
|
Label No. 355 External dial ring for
700 type telephones. Engraved with figures and letters.
Available in Black, Blue, Green, Grey, Ivory, Red and Yellow.
Introduced in 1958 and made obsolete in 1970.
This label was held in place by a circular retaining clip.
Superseded by Label No. 473.
|
|
Label No. 358
Introduced in 1959 this was originally a clear plate with painted legend
or latterly a solid plate with an embossed legend.
Made from Polymethyl, Methacrylate.
The plate was
used on the Telephones No. 706.
Discontinued in 1965 as they tended to
foul on the case.
The Label clips onto a plastic holder, called a
Plunger, Switch, that is fitted on the Switch
mounting. Switch No. 5A-1 (non-locking) and No. 5A-2 (locking) are
used with these labels.
Available in the colours Black, Blue, Green, Grey, Ivory, Red and Yellow.
Printed with the words:-
358 - Blank
358A - Call Exch
358B - Call Main
358D - Recall
358E - Bell ON/OFF
358G - Press
358H - Off / ON
Click here or the
different
types (Diagram N809)
Click here for the specification
(Drawing 91263)
Superseded in 1965 by the Switch 5A-3, which used solid plastic with
embossed legends - Parts 3/DBU/263, 4/DBU/263, 3/DBU/264 and 4/DBU/264.
Drawing - SD97 and 91263.
Diagram - N809.
|
Label No. 358D
Mounted on a Switch No. 5A-1 |
Label No. 360 Emergency label plate.
Used on Boxes, Coin Collecting No. 700, 705 & No. 735 when the mechanism
is removed.
|
|
Label No. 378 This is a blank of
Label No. 358 which can be engraved by factories division.
This was particularly useful when a wall type 1/706 was installed as
any button fitted would be upside down.
|
|
Label No. 386 Dial centre label for
Dials Automatic and Dummy.
Printed in different variants depending on the exchange type
connected to.
Click here for the different types
|
|
Label No. 388 Plain dial number
plate. Introduced in October 1959 and was fitted to Dial No. 21CA.
Available in Black, Blue, Green, Grey, Ivory, Red and Yellow.
Superseded by Label No. 420.
Drawing - 91360.
|
|
Label No. 389 Dial number plate with
letters and figures.
Used on Dial No. 21LA.
|
|
Label No. 396A Label worded "DANGER
250V A.C."" in red on white.
Size - 2" x ¾".
|
|
Label No. 397A
Ivory, Manilla paper, label used on
Strip, Designation No. 33.
Used on Switchboard P.M.B.X., 2/2A for exchange line and extension
designation.
Drawing - 91511.
|
|
Label No. 400 Self adhesive label
used on Holder, Directory No. 5.
Used in the London Postal region telephone kiosks.
Drawing - 91478.
|
|
Label No. 401 Paper label used on
Strip, Designation No. 33.
Used on Switchboards, P.M.B.X. No. 2/3A when Meters No. 21B, Grey are
installed.
Manila paper, coloured Ivory, 010.
Printed with the characters FREE LINK in black.
First used in 1962.
Drawing 91705.
|
|
Label No. 407 Paper label used on
Strip, Designation No. 34A.
Used on Switchboards, P.M.B.X. No. 2/4A when Meters No. 21B, Grey are
installed.
Manila paper, coloured Ivory, 010.
Printed with the characters 1, 2 & 3 in black.
First used in 1962.
Drawing 91879.
|
|
Label No. 408 Double sided paper label
numbered 1 to 4.
Used with Strips, Designation No. 35A.
Used on Switchboard, P.M.B.X., No. 2/4A when Meters No. 21B, Grey are
required.
Drawing - 91877.
ETL drawing - N100035.
|
|
Label No. 413 Self adhesive plastic
label fitted to the front of Front No. 11, which is used on Boxes,
Coin Collecting No. 700.
|
|
Label No. 415
Ivory, Manilla paper, label used on
Strip, Designation No. 36A.
Used on Switchboards, P.M.B.X. No. 2/3A for exchange line designation
when meters not required.
Drawing - 91706.
|
|
Label No. 416
Ivory, Manilla paper, label used on
Strip, Designation No. 37A.
Used on Switchboards, P.M.B.X. No. 2/3A for extension designation,
when meters not required.
Drawing - 91695.
|
|
Label No. 418 Paper label used on
Strip, Designation No. 38A.
Used on Switchboards, P.M.B.X. No. 3/5A when meters not required.
Drawing - 92378.
|
|
Label No. 419 Paper label used on
Strip, Designation No. 39A.
Used on Key and lamp No. 2A.
Drawing - 91666.
|
|
Label No. 420 Dial number plate with
arrowheads (Chaplets) pointing outwards. Introduced in December 1961 and
fitted to Dial No. 21CA.
Available in Black, Blue, Green, Grey, Ivory, Red and Yellow.
Characters are black with background colours Ivory and Yellow. All
of backgrounds have white characters.
Superseded by Label No.421.
Drawing for characters - SD116. Drawing - 91665.
|
|
Label No. 421 See Label No. 420.
Drawing - 91822.
|
|
Label No. 427 Dial number plate with
figures only.
Used on Dial No's 22FA and 24FA. White background with black
figures. Drawing - 91769. |
|
Label No. 430
Ivory, Manilla paper, label used on
Strip, Designation No. 40A.
Used on Switchboards, P.M.B.X. No. 2/4A for designating extensions.
Drawing - 91819.
|
|
Label No. 431
Ivory, Manilla paper, label used on
Strip, Designation No. 41A.
Used on Switchboards, P.M.B.X. No. 2/4A for designating exchange
lines.
Drawing - 91815.
|
|
Label No. 438
Coloured plastic lens for use with Caps, Lamp No. 83A (Clear) on 2000
type keys.
Colours:-
Amber, blue, Clear, Frost, Green, Orange, Red, Frosted and Yellow.
|
|
Label No. 458
Label which is adhered to Headsets No. 1 or No.
2 in switchboard suites.
Allows easy identification of each Operators headset.
|
|
Label No. 461 Paper label used on
Switchboards, P.M.B.X. No. 4/1A. Stile strips, made of Warite. 7
types with different text. Drawing - 92585/1 and
92585/2. |
|
Label No. 468A Dial number plate
used on Dial No. 21FA after 1967. Background is coloured Antique Silver with black
figures. Introduced circa 1966. Drawing - 92525.
|
|
Label No. 473A Outer dial blank ring. Introduced in January 1966.
Available in Black, Blue, Green, Grey, Ivory, Red and Yellow.
Drawing - 92486.
|
|
Label No. 479 Outer dial number
ring.
Introduced in 1967.
Label No. 479A was engraved with figures only.
Label No. 479B was engraved with letters and figures.
Label No. 479C was Ivory only and printed with black figures. Used
for assisting visually handicapped people.
Plastic enlarged number ring that fits 700 type telephones except
Telephone No's 713, 722 and 745.
Drawing - 92796.
Available in Black, Blue, Green, Grey, Ivory, Red, Brown and Yellow.
Supersedes Label No. 473A.
|
|
Label No. 483B Dial number plate with
figures only.
Used with Dial No. 30.
|
|
Label No. 511 Used on Cover No. 50C,
which was fitted to the Armoured
No. 705 Coin box. This is a metal plate which is used to cover the coin
slot hole when the mechanism is removed.
|
|
Label No. 540A
Self adhesive enlarged numeral dial ring used on 700 type telephones..
|
|
Label No. 588A Plastic label which
are fixed to wooden poles to show when the pole was examined.
The label is punched on site and this label shows an examination took
place in May 1982 by Testing Party B.
Dimensions are 100mm x 25mm.
|
|
|
|
|
|
