New Zealand Post Office
Telephone F325

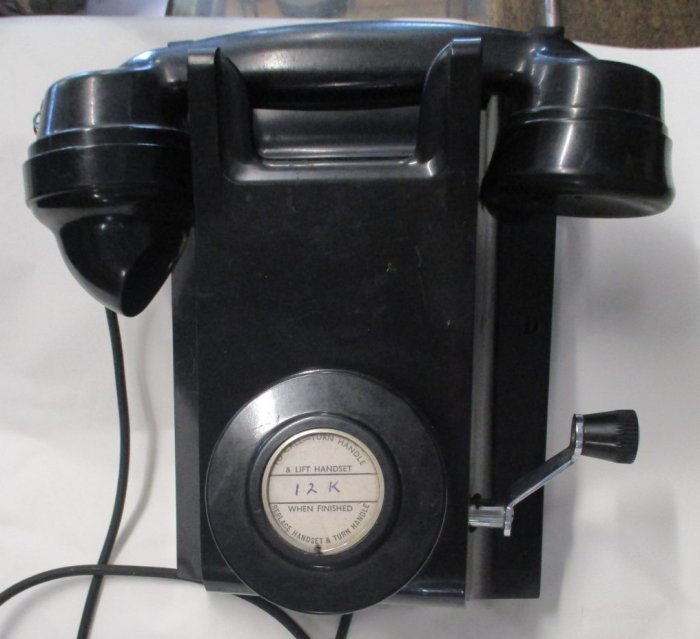

Magneto, Wall telephone, with a Bakelite casing used on public call stations in Magneto areas.

Used in conjunction with a post-payment coinbox, the BPO Mechanism No. 16B.

The telephone requires two 1.5v batteries for transmission purposes.

NZPO Engineering Notes Telephones, Stations, G1121 refers.

Made by British Ericsson, their model N2204A2.

Circuit Diagram
