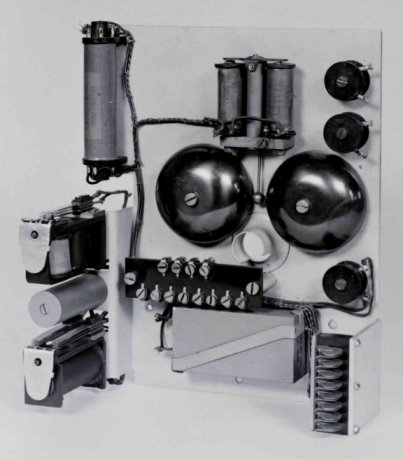

BELLSET No. 40

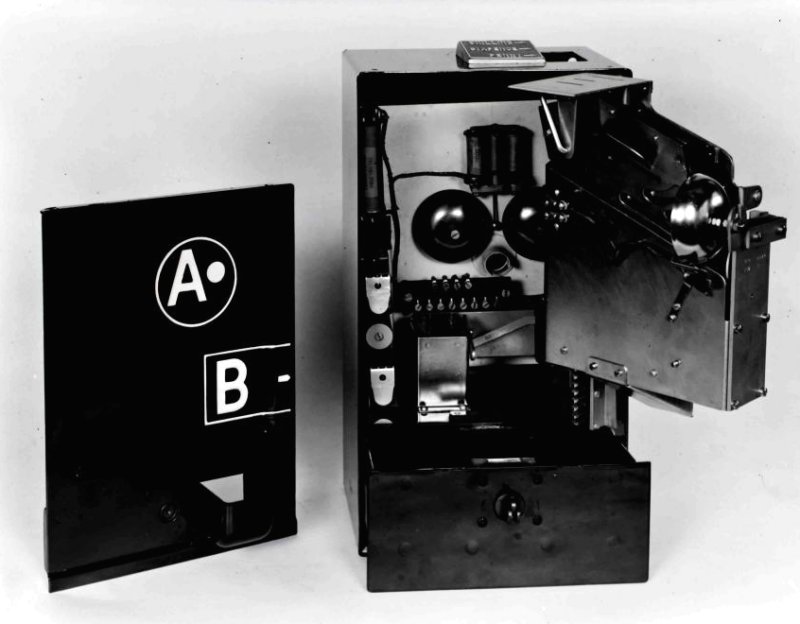

A Bellset that is mounted inside Boxes Coin Collecting No's 14D & 14E.

Used with Telephone No. 238 during the period immediately preceding and following a transfer from CB to Automatic working.

Bellset included (1946):-
1 x Bell, No. 59A, Unmounted.
1 x Condenser, M.C., No. 102.
1 x Bell-gong No. 2, Nickelled.
1 x Bell-gong No. 2A, Nickelled.
1 x Jack, No. 59.
1 x Resistor, Coil, No. 12 - 50 Ohms.
1 x Resistor, Coil, No. 12 - 120 Ohms.
1 x Resistor, Coil, No. 12 - 350 Ohms.
1 x Resistor, Coil, No. 12 - 630 Ohms.
1 x Clip, No. 29.
1 x Coil, Induction, No. 27.
1 x Coil, Bridging, No. 7C.
1 x Relay, No. 128B.
1 x Relay, No. 309A.
2 x Washers, Locking, No. 1210.

Bellset included (1956):-
1 x Bell, No. 59A, Unmounted.
1 x Capacitor, Paper, No. 7705.
1 x Bell-gong No. 2, Nickelled.
1 x Bell-gong No. 2A, Nickelled.
1 x Jack, No. 59.
1 x Resistor, Coil, No. 12 - 50 Ohms.
1 x Resistor, Coil, No. 12 - 120 Ohms.
1 x Resistor, Coil, No. 12 - 350 Ohms.
1 x Resistor, Coil, No. 12 - 630 Ohms.
1 x Coil, Induction, No. 27.
1 x Coil, Bridging, No. 7C.
1 x Relay, No. 128B.
1 x Relay, No. 309A.
2 x Washers, Locking, No. 1-2 BA.
