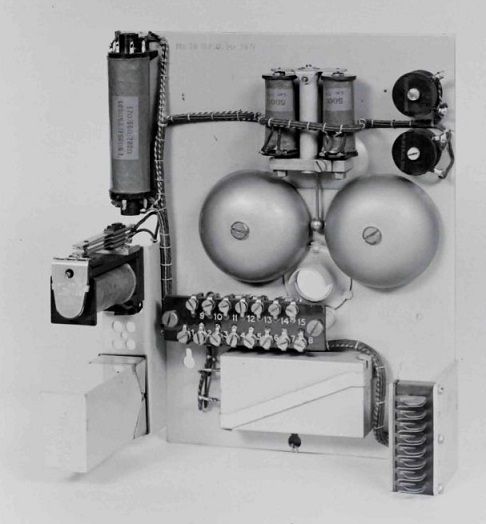

BELLSET No. 36


Bellset No. 36 is used on Boxes Coin Collecting No's 14D & 14E in UAX 5 & 6 areas.

Bellset included (1946):-
1 x Bell, No. 59A, Unmounted.
2 x Condenser, M.C., No. 102.
1 x Bell-gong No. 2, Nickelled.
1 x Bell-gong No. 2A, Nickelled.
1 x Jack, No. 59.
1 x Relay, No. 181A.
1 x Resistor, Coil, No. 12 - 30 Ohms.
1 x Resistor, Coil, No. 12 - 200 Ohms.
1 x Clip, No. 29.
1 x Clips, No. 42.
1 x Coil, Induction, No. 27.
2 x Washers, Locking, No. 1210.

Bellset included (1956):-
1 x Bell, No. 59A, Unmounted.
1 x Capacitor, Paper, No. 7705.
1 x Condenser, M.C., No. 102.
1 x Bell-gong No. 2, Nickelled.
1 x Bell-gong No. 2A, Nickelled.
1 x Jack, No. 59.
1 x Relay, No. 281A
1 x Resistor, Coil, No. 12 - 120 Ohms.
1 x Clip, No. 42.
1 x Coil, Induction, No. 27.
3 x Washers, Locking, No. 1-2 BA.

Diagram - N536.
