BELLSET No. 35


Bellset for mounting inside Boxes Coin Collecting No's 14D & 14E in Manual Exchange (CB) areas.

Used a Telephone No. 238.

This Bellset has two relays and a bridging coil as well as the usual induction coil, bells and capacitor.

There were Mark 1 and Mark 2 variants.  The Bellset No. 35 Mark 1 used a Coil, Induction No. 22, whilst the Bellset No. 35 Mark 2 used a Coil, Induction No. 27.

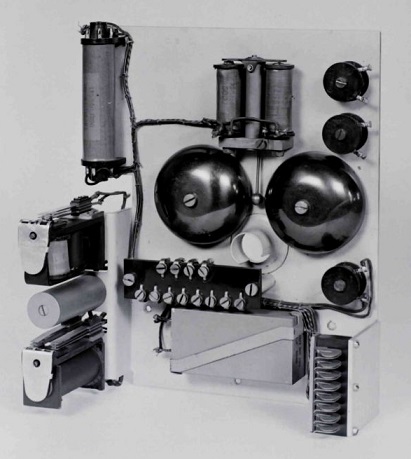

Provision is made for the two additional Resistor, Coil's No. 12 to be fitted.  These are shown to the top right of the picture.

Bellset included (1946):-
1 x Bell No. 59A, Unmounted.
1 x Condenser, M.C., No. 102.
1 x Bell-gong No. 2, Nickelled.
1 x Bell-gong No. 2A, Nickelled.
1 x Jack No. 59.
1 x Resistor, Coil No. 12 - 200 Ohms.
1 x Clip No. 29.
1 x Coil, Induction No. 27.
1 x Coil, Bridging No. 7C.
1 x Relay No. 128B.
1 x Relay No. 309A.
2 x Washers, Locking, No. 1210.

Bellset included (1956):-
1 x Bell No. 59A, Unmounted.
1 x Capacitor, Paper, No. 7705.
1 x Bell-gong No. 2, Nickelled.
1 x Bell-gong No. 2A, Nickelled.
1 x Jack No. 59.
1 x Resistor, Coil No. 12 - 120 Ohms.
1 x Clip No. 51D.
1 x Coil, Induction No. 27.
1 x Coil, Bridging No. 7C.
1 x Relay No. 128B.
1 x Relay No. 309A.
3 x Washers, Locking, No. 1-2 BA.

Diagram - N535.
Drawing - 60883.
