TELEPHONE No's 4001/4002/4003

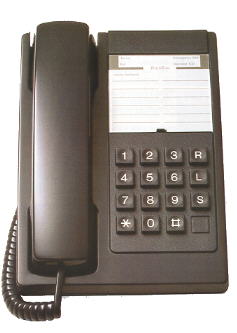

Vanguard
(Telephone No. 4001AR)

Basic telephone designed for business and domestic installation.

Features include:

  • Pulse/tone switchable
  • Earth/time break recall selectable
  • Last number redial
  • Mute
  • Hearing aid compatible
  • Ringer volume control
  • REN - 1
  • Desk or wall mountable

Colours (Mark 1): Light Beige, Charcoal Grey and Polar White
Colours (Mark 2): Alpine, Charcoal, Oatmeal and Red

Approval number : S/1000/3/J/501151



Vanguard IC
(Telephone No. 4003AR)

A basic Vanguard telephone with the addition of an inductive coupler which is compatible with behind-the-ear hearing aids.

Features include:

  • Pulse/tone switchable
  • Earth/time break recall selectable
  • Last number redial
  • Mute
  • Hearing aid compatible
  • Ringer volume control
  • REN - 1
  • Desk or wall mountable
  • Inductive coupler receiver Inset

Colour: Light Beige, Charcoal Grey and Polar White

Approval number : S/1000/3/J/501151




Vanguard 10
(Telephone No. 4003AR)

More highly specified version of Standard Vanguard with 10 memories and on-hook dialling.

Features include:

  • Pulse/tone switchable
  • Earth/time break recall selectable
  • Last number redial
  • Mute
  • Hearing aid compatible
  • Ringer volume control
  • REN - 1
  • Desk or wall mountable
  • 10 Number memory (each address can store up to 24 digits including * and # but not recall)
  • On hook dialling

Colours: Light Beige, Red, Charcoal Grey and Polar White

Approval number : S/1000/3/J/501080

Numbering numbers on the Vanguard 10:

  • Lift handset
  • Press 'P'
  • Press required memory button
  • Key number to be stored
  • Press 'P'

Where numbers greater than 18 digits need to be stored, the remaining digits may be stored under other memory button(s) or keyed manually.



Vanguard 10E
(Telephone No. 4005)

Electronically updated version of the Vanguard 10 with monitor.

Features include:

  • Pulse/tone switchable
  • Earth/time break recall selectable
  • Last number redial
  • Mute
  • Loudspeaker monitor
  • Hearing aid compatible
  • Ringer volume control
  • REN - 1
  • Desk or wall mountable
  • 10 Number memory (each address can store up to 24 digits including * and # but not recall)
  • On hook dialling

Colours: Alpine, Charcoal, Oatmeal and Red

Approval number: S/1000/3/M/502246

Storing numbers on the Vanguard 10E:

  • Lift handset, press 'Memory Store' (confidence beep)
  • Press required memory location (confidence beep)
  • Key number to be stored (confidence beep for each digit)
  • Press 'Memory Store' (confidence beep)

If more than 24 digits are keyed, the audible tone changes to an error beep.  The memory locations can also hold 'Goto MF' and 'Recall'.





ADDITIONAL INFORMATION

These were known as the Vanguard range of telephones comprises:-

  • Tele 4001 AR, Vanguard (basic).
  • Tele 4002 AR, Vanguard 10 (10 memory addresses).
  • Tele 4003 AR, Vanguard IC (basic telephone with inductive coupler).
  • Tele 4005 AR, Vanguard 10E (10 memory addresses).

(Telephone No's 4001 & 4003 are now available with Vanguard II circuitry).

'Customised' Vanguards (i.e. with customer's logo printed on the case) were also available.

The Vanguard Telephone range is designed specifically for the rental market, all models are similar in appearance.

A three position slider switch (labelled LD-MFT-MFE) is provided on the right hand side of the instrument. This is normally supplied set to LD to offer Loop Disconnect/Mixed signalling with Earth recall but should be shifted to 'MFE' for MF signalling with Earth recall or 'MFT' for MF signalling with Timed Break recall (TouchTone) as necessary.

Mixed signalling is the facility whereby a call may be set up in the LD mode and continued for the duration of the call in the MF mode by pressing the '*' button.



There is no provision for storing PBX access pauses in any of the memory stores, PBX access codes may be keyed manually before using stored number or last number redial memory.

The Inductive Coupler (IC) versions are compatible with behind-the-ear hearing aids when these are switched to the 'T' position (normally the Polar White model).

Introduced in the early 1990's these phones were made by by NTE with earlier models by BTCE.

APPROVAL STATUS
Approved under Approval numbers S/1000/3/J/501151 (Vanguard and Vanguard 4003 IC) and S/1000/3/J/501080 (Vanguard 10) for use on DELs and PBXs in categories 1,3,5,7,9 & 11.

Vanguard and Vanguard 10 have a REN of 1 and are intended for use in normal Domestic or Residential locations.
They are not suited for use in bathrooms or other locations prone to damp or condensation.

Approximate overall dimensions are 216mm x 152mm x 70mm, weight 847 grams. When mounted in an enclosure (e.g. in a lift telephone housing) an additional 13mm should be allowed along one edge for the handset cord. NB only Vanguard II Inductive Coupler models should be used for telephones in lifts.

Two 2.5mm x 30mm pan-head wood screws and wall plugs (requiring 5/16" hole) are provided for wall mounted use via key-hole slots in the base of the instrument.

The Signalling switch should be set on installation according to the type of exchange/PBX it is used on, i.e.:-

MFT for Digital or Modernised TXE4 exchanges and a-minority of PBXs (i.e. for TouchTone, Star Services and Timed Break Recall PBXs).
MFE for the majority of modern PBXs (i.e. with MF signalling with Earth recall).
LD for unmodernised exchanges and older PBXS.

Table mounted - the rear legs should be extended to ensure handset fully operates the gravity switch on clear down.

Wall mounted - the handset and line cords may be routed through the alternative channels in the base as required and the line cord may be shortened. The handset retaining lug should be turned through 180 degrees to support the handset.

WARRANTY
BT's warranty from the manufacturer is for 24 months from date marking on the base (Week & Year forming first four digits of the serial number), items failing within warranty should be returned with fault details attached to District stores for warranty handling.

PARTS

DESCRIPTION BT Item Code
Telephone  4001  AR Vanguard, Polar White 877665 (877898)
Telephone  4001  AR Vanguard, Light Beige 877666 (877899)
Telephone  4001  AR Vanguard, Charcoal Grey 877667 (877900)
Telephone  4003  AR Vanguard 10, Red - June 1992
Telephone  4003  AR Vanguard 10, Alpine White - June 1992
Telephone  4003  AR Vanguard 10, Oatmeal - June 1992
Telephone  4002  AR Vanguard IC, Polar White - 1992 877670 (877901)
Telephone  4002  AR Vanguard IC, Light Beige - 1992 877671 (877902)
Telephone  4002  AR Vanguard IC, Charcoal Grey - 1992 877672 (877903)
Telephone  4003  AR Vanguard 10, Polar White - 1992 877674
Telephone  4003  AR Vanguard 10, Red

LINE TESTING
Idle - Normal capacitor loop, additionally these telephones draw on-hook current (typically 10 micro Amps) to maintain stored/last number memory. This may give apparent 'Low Loop' line test conditions.

Seized - Normal press button telephone loop. The electronic keypad and transmission circuitry may give 'high resistance' tele loop line test conditions as with other press button telephones.

ADDITIONAL INFORMATION
There is no provision for memory back-up batteries in Vanguard or Vanguard 10 telephones, stored/last number memory cannot be guaranteed if the telephone is removed from line for more than 5 minutes although in practice memory may last for several hours on these telephones.

Signalling details
MF signalling
- Original Vanguard (basic) and Vanguard 10, fixed duration tone bursts of approximately 90 ms.
- Vanguard II, continuous tone whilst button is pressed.

Timed break recall
- All models, approximately 90 ms

Earth recall
- All models, continuous whilst recall button is pressed (to a maximum of 1 second).

RFI immunity
Vanguard & Vanguard 10 have good immunity against RFI from 100kHz to 200MHz.

Identified interworking problems
Original Vanguard basic and Vanguard 10 (i.e. Vanguards with processor 'watch dog' circuitry).

  1. Delayed dial tone (approx. 0.5 second delay on initial power up)
  2. No dial tone when used on low voltage switching systems such as 'Consort' (i.e. where line Voltage can be lets than 20 Volts)
  3. No dial tone on low voltage exchange line systems such as 'Local Line Concentrator 14/SA'.
  4. Call drop-out or wrong numbers when used with Autodials 402 (e.g. for telephones in lifts).
  5. Calls lost in transfer when used on Renown on Digital exchange lines (call goes into hold at main exchange).
  6. Last number redial lost when used on Renown (memory clears when recall button is pressed to access line).
  7. Last number redial incorrect, when recall button is held between 0.2 and 1 second. The 'L' memory stores dialled digits after 'recall' operation instead of digits dialled prior to 'recall'.
  8. Last number redial non-op when user flashes hook switch quickly. This results in exchange recognising the line break (and giving dial tone), but the break is too short for telephone to recognise.

Most of the above problems (a-d) have been overcome on Vanguard (basic) II models, these may be identified by:
Serial Numbering (Serial Number 9044xxxx onwards).
MF signalling (Vanguard II are not fixed burst signalling).
Recall switch (Vanguard II has a 'soft button' instead of a mechanical recall switch).
Problems (e-g) are due to be resolved on later Vanguard II models.

Vanguard Incompatibility
Vanguard II telephones have an 'electronic' earth recall circuitry which relies on the telephone being powered up to function correctly and hence are not suitable for use as 'earth calling' PBX power fail extensions.

Vanguard II telephones with continuous tone signalling are not recommended for use on the Pentara. When an access digit e.g. 9 (for exchange line) is keyed, the Pentara can provide the exchange line before the key is released, causing a further 9 to be extended to the exchange.

There is a Pentara comparability problem which, in the light of the Pentara's age, is unlikely to be solved.  It would be prudent to resist installing any Vanguard telephones on the Pentara System as swop out to a non-continuous pulse version will be impossible in the future.

Additional information on the Vanguard 10E
Customised Vanguard 10Es (i.e. with customer's logo printed on the case) are also available.

A three position slider switch (labelled LD-MFT-MFE) is provided on the right hand side of the instrument. This is normally supplied set to 'MFT' for MF signalling with Timed Break recall (TouchTone), but should be shifted to LD for Loop Disconnect/Mixed signalling with Earth recall or to 'MFE' for MF signalling with Earth recall as necessary.

Mixed signalling is the facility whereby a call may be set up in the LD mode and continued for the duration of the call in the MF mode by pressing the '*' button to access certain network based facilities.



There is no provision for storing PBX access pauses in any of the memory stores, PBX access codes may be keyed manually before using stored number or last number redial memory.

Made by Northern Telecom Europe (NTE) Ltd.

APPROVAL STATUS
Approved under Approval number S/1000/3/M/502246 for use on DELs and PBXs in categories 1,3,5,7,9 & 11.

PLANNING
REN, Vanguard 10E has a REN of 1 and is intended for use in normal Domestic or Residential locations. They are not suited for use in bathrooms or other locations prone to damp or condensation.

Approximate overall dimensions are 216mm x 152mm x 70mm, weight 871 grams. When mounted in an enclosure an additional 13mm should be allowed along one edge for the handset cord. NB only Vanguard II Inductive Coupler models should be used for telephones in lifts.

Two 2.5mm x No.8 pan-head wood screws and wall plugs are provided for wall mounted use via key-hole slots in the base of the instrument.

The Signalling switch should be set on installation according to the type of exchange/PBX it is used on, i.e.:-

MFT - for Digital or Modernised TXE4 exchanges and a minority of PBXs (i.e. for TouchTone, Star Services and Timed Break Recall PBXS).

MFE - for the majority of modern PBXs (i.e. with MF signalling with Earth recall).

LD - for un-modernised exchanges and older PBXS.

Table mounted
the rear legs should be extended to ensure handset fully operates the gravity switch on clear down.

Wall mounted
the handset and line cords may be routed through the alternative channels in the base as required and the line cord may be shortened by re-terminating. The handset retaining lug should be turned through 180 degrees to support the handset.

PARTS

Description BT Item Codes
Telephone 4005 AR Vanguard 10E, Alpine White 877908 (87 7959)
Telephone 4005 AR Vanguard 10E, Oatmeal 877909 (87 7960)
Telephone 4005 AR Vanguard 10E, Charcoal Grey 877910 (87 7961)
Telephone 4005 AR Vanguard 10E, Red 877951 (87 7962)

LINE TESTING
Idle - Normal capacitor loop, additionally these telephones draw on hook current (typically 25 micro Amps) to maintain stored/last number memory. This may give apparent 'Low Loop' line test conditions.

Seized - Normal press button telephone loop. The electronic keypad and transmission circuitry may give 'high resistance' tele-loop line test conditions as with other press button telephones.

ADDITIONAL INFORMATION
Vanguard 10E should only be used on version 8/9 of a 1+1 carrier system, a NTE's.

Vanguard 10E is not suitable for use on Shared Service.

Secrecy LED will only light up in handset mode.

There is no provision for memory back-up batteries in Vanguard 10E telephones, saved/last number memory cannot be guaranteed if the telephone is removed from line for more than 5 minutes although in practice memory may last for several hours on these telephones.

Signalling details:

  • MF signalling - continuous tone whilst button is pressed (see note).
  • Timed break recall - approximately 90 ms.
  • Earth recall - when the recall button is pressed there is a pause of 800 ms, then approximately 800mS recall and finally a 800mS pause.

Note. The method of 'continuous' MF signals whilst the button is pressed way cause 'double access signal' problems on Pentara switches. This can be overcome by storing the access digit in a memory. Which will then give a timed digit duration of approx. 100mS.

PBX Interworking
As some facilities will not operate effectively with a 2 + 8 or Renown PBX's it is recommended that Vanguard 10E is not installed.
