TELEPHONE No. 152

Introduced in 1936, this is a C.B. telephone housed in a Teak box, suspended by extendable rods and balance weights, from an overhead rail.

This was a special item only used in Billingsgate Fish Market, London.

The phone was mounted in the box which could be lowered via a system of pulleys or moved sideways on overhead rails.  There was also a Press Button G fitted inside the box.

The Telephone No. 152A was fitted with a Telephone No. 162 mounted on a Bellset No. 25 (Mark 3 & Mark 4).
The Telephone No. 152B was fitted with a Telephone No. 232 mounted on a Bellset No. 26.

Telephone, No. 152A included:-
1 x Bell-set No. 25.
1 x Block, Terminal No. 20/2, Black.
1 x 8ft. of Cordage, Instrument No. 3/M.
1 x Press-button, G, Black.
1 x Telephone No. 162 CB, Incomplete and minus Cord.
1 x Telephone No. 164, with Cord 3/99BN 33".

Circuit Diagram - N252.

Drawings - 60911, 91327 & 91331.

Adjustment of Magneto bells

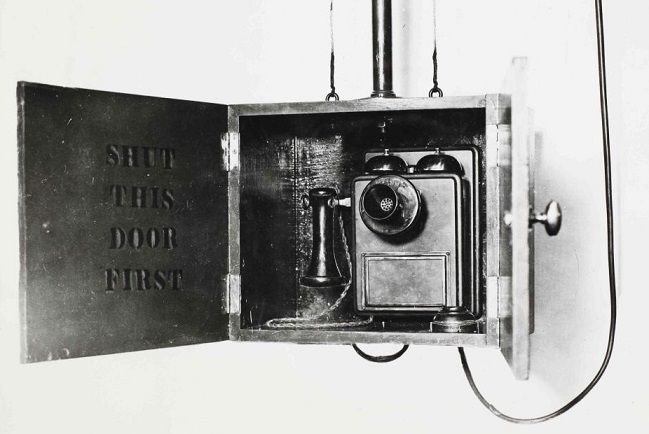

The picture above shows a Telephone No. 101 for Billingsgate Market
This was an experiment and it is not known if this was introduced

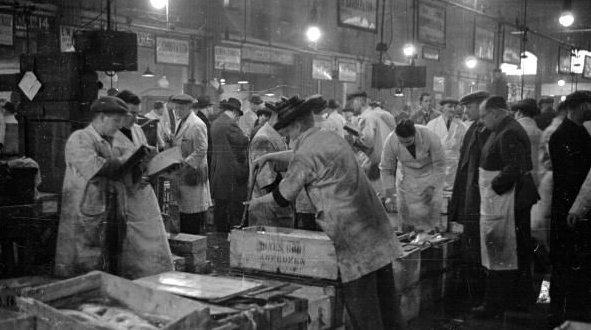

You can just about see two telephone boxes, one to the left above the two chaps heads
and the other just to the right of centre

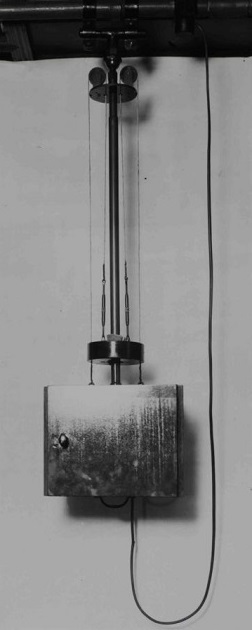

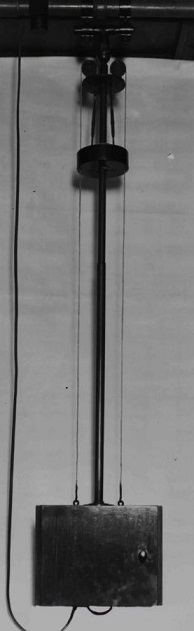

The two pictures above show the telephone boxes
in the raised and lowered positions

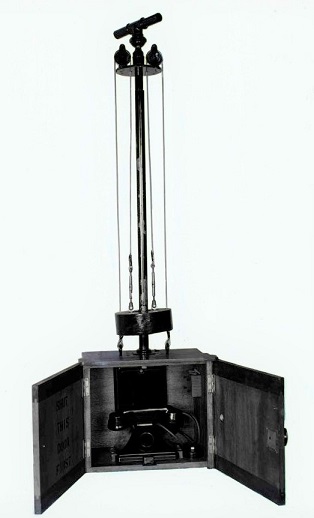

Picture showing a Telephone No. 162 or No. 232 installed
