TELEPHONE No. 76


Automatic Pedestal Telephone

Candlestick table telephone used on S.T. & C's (late Western Electric Co.) Rotary Exchanges at Darlington and Dudley.

The components could not be fitted within the case of the telephone so a Bellset No. 1 with bias spring would be installed.

Mark 234 - WESTERN ELECTRIC Co. - Used on Darlington Exchange (used Dial No. 5).

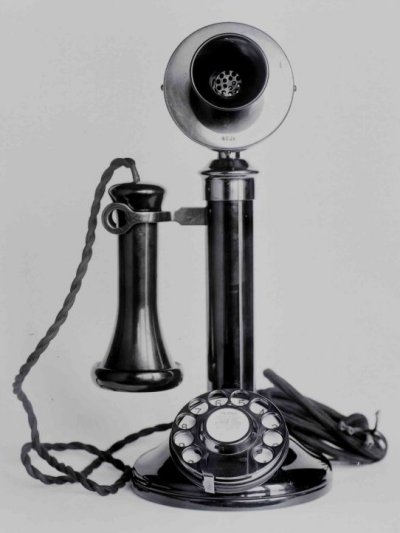

Mark 235 - WESTERN ELECTRIC Co. - Used on Dudley Exchange (used Dial No. 6) - see picture to the right.

Some of the information here was taken from Diagram N176, the original dated 1918 and the issue 2, dated 1919.  The Issue 2 diagram shows the Mk235 set with a Dial No. 6.  The GPO Stores Rate Book 1928 confirms the above but also introduces the Dial, Automatic No. 8FW in place of the Dial, Automatic No. 6.  A Dial, Auto No. 10FW may also be found on these telephones.

The equivalent wall set is the Telephone No. 65.

Superseded by the Telephone No. 150W in 1928.

Circuit diagram - N176.

Circuit diagram - A.T. 318.

Telephone mouthpiece sanitisers

Click here for more information on Bias Springs.


Telephone included (1928):-
Please refer to table below

Item Mark 234 (Diag. A.T. 318.) Mark 235 (Diag. A.T. 320.)
Cords, Instrument No. 422 waterproof 1 1
Cords, Instrument No. 420 - 1
Cords, Instrument No. 116 4 2
Cords, Instrument No. 222 waterproof 1 1
Dials, Automatic No. 5 1 -
Dials, Automatic No. 6 or No. 8FW - 1
Hook, Receiver F 1 1
Switches, Receiver No. 2 1 1
Receiver, Bell No. 1 1 1
Transmitter No. 1 1 1
