STERLING TELEPHONE AND ELECTRIC Co. Ltd


SWITCHBOARDS
(PEDESTAL TYPE)

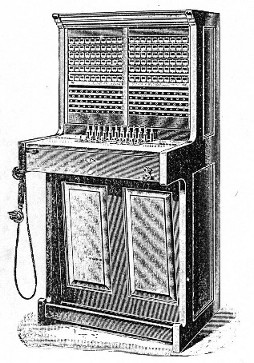

No. U 595

Standard Pattern Pedestal Switchboard, comprising:
Line Indicators, Line jacks mounted on Ebonite Strips, Improved Iron-clad Tubular ďRing-offĒ Indicators, Through Connection Plugs and Cords, with Suspension Pulley Weights, Operatorís Combined Listening and Ringing Keys, Night Bell, Night Bell Switch, Operatorís Hand Combination and Four-Magnet Generator.

The Line Terminals are mounted on Oak Battens, hinged at one end thus giving great facility for examining the internal connections.

The Woodwork throughout is of time best Cabinet Work, and Solid Polished Walnut.

The Front Panel underneath the Operatorís Shelf is removable, as is also the entire Panel at the back

The Operatorís Key Shelf opens on Hinges.

All working parts are readily accessible.

Note: The above Switchboard is also supplied for Battery Call Systems.

Taken from the Sterling Catalogue No. 11 & 12
