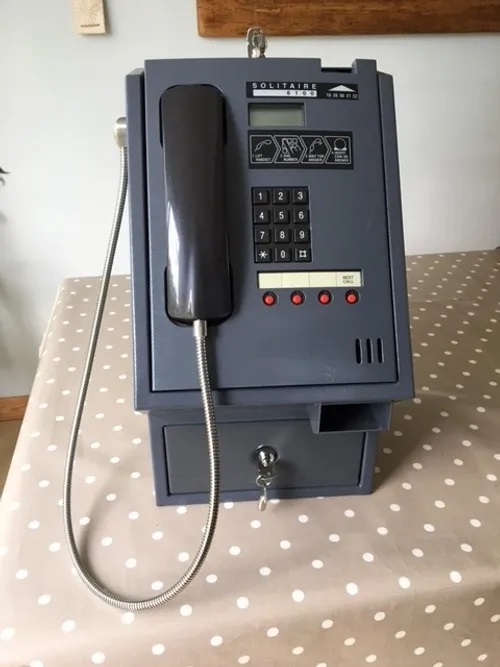

The Solitaire 6100 HS payphone is designed
for semi-supervised indoor locations where a managed payphone
service is required. This high security version has a much
greater 1200 coin cashbox capacity, useful for very busy sites,
and a fully armoured handset cable.
Solitaire 6100HS uses the Windows 95 PC Based
Solitaire Payphone Management System (PMS) to provide a fully
managed payphone service.
Owner Benefits
- Managed payphone service
- Remote Programming of all payphone
parameters including tariffs, exceptions and coins
- Remote Reporting of Status including Cashbox
Content, Battery Low and Handset Cord Cut
- Remote LCR programming
- PMS System provides Management Reports: Cash
Collections Audit, Call Traffic, Memory Button Usage Audit,
Callout Response Monitoring
Features
- Some features are controlled from PMS
- Ready to use. Just Plug In
- Pay on answer with Coin Refund
- Takes UK coins 10p, 20p, 50p, £1 and £2
- Electronic Coin Discrimination
- Remotely Programmable Coin Mechanism
- 3 direct dial memory buttons
- Direct line or PABX.
- Owner's PIN number to allow calls without
coins
- Reverse Charge Call Protection
- 1200 Coin Cashbox Capacity
- Remote Programmable Least Cost Routing
- Pulse/Tone Switchable
- International Calls allowed (Banning option)
- Adjustable Ringer Volume
- Programmable 100 Operator Access
- BT Phonecard Plus Access on 144
- Allows 999/112 Emergency Calls without coins
- Two Year Battery Life (4 x AA Cells)
- 1.6mm sheet steel security enclosure to
protect payphone and cash
- Armoured handset cord to resist hard use
- Refund located on Case Front
- Keyhole slots and multiple holes in
backplate allow very firm wall fixing and protects telephone
socket.
- High security radial-pin tumbler locks on
cashbox and payphone compartment
|
