PNEUMATIC TUBE SYSTEMS
Ticket Tubes

The Ticket Tube system was first introduced in 1911 and generally used to send Trunk Call dockets/tickets to the docket administrators.  The Trunk Switchboard operators would complete tickets for all calls made and these were used as the basis for billing the caller.

The Ticket Tubes were oblong in shape and did not use carriers.  Instead, the ticket was folded at one end and was pushed through the tube by air.

Click here for more information

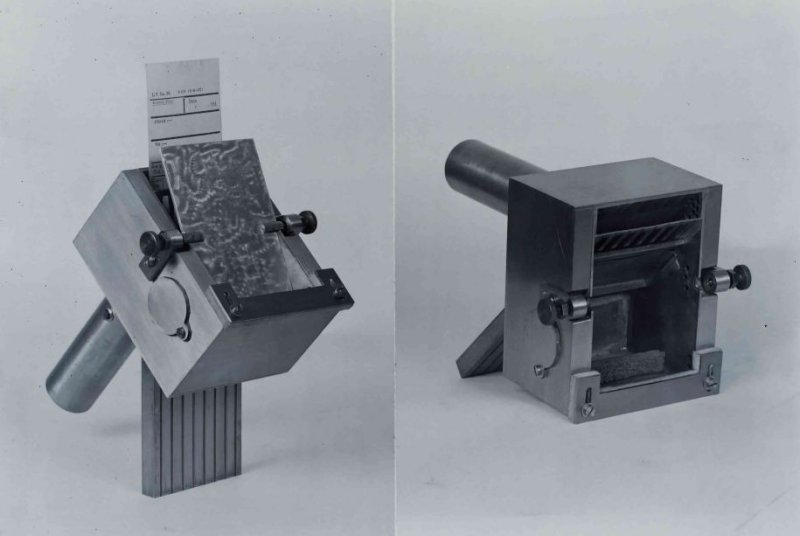

Discharge Terminal No. 2 (1932)

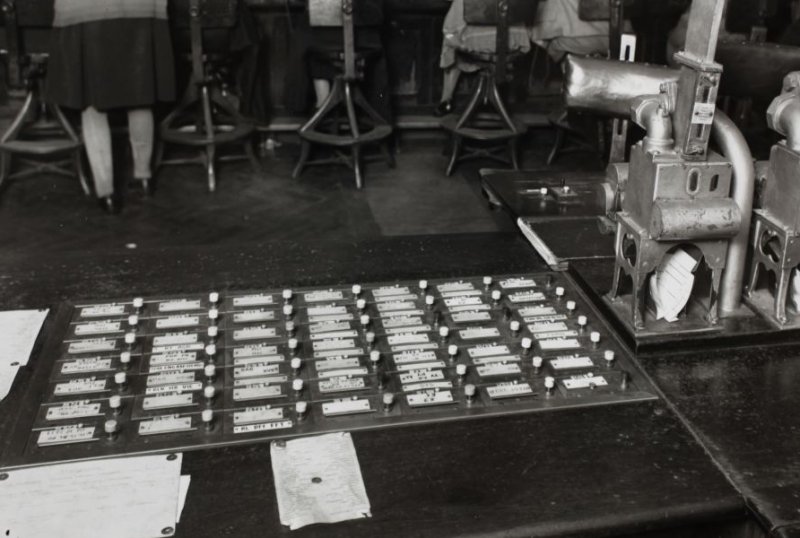

Trunk Exchange - Distribution position
Outgoing ticket tubes are on the desk and to the right is a discharge terminal

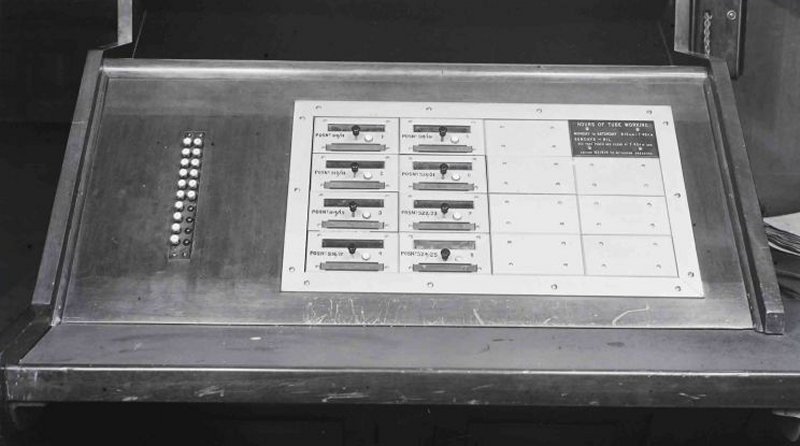

Continental Distribution position
Outgoing ticket tubes

Newcastle Trunks - Distribution and Ticket filing (1933)

Newcastle Trunks - Distribution and Ticket filing (1933)

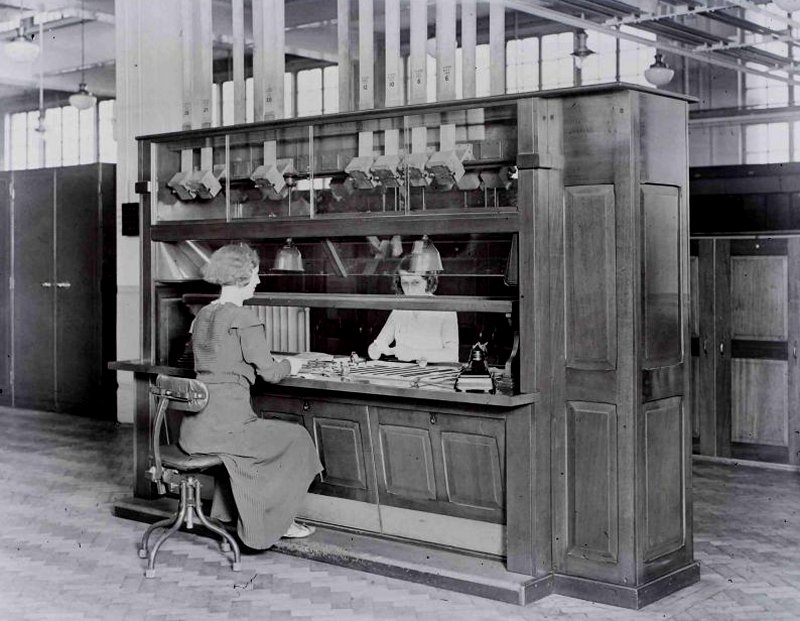

Manchester Trunks - Distribution (1934)
A set of 7 discharge terminals are above

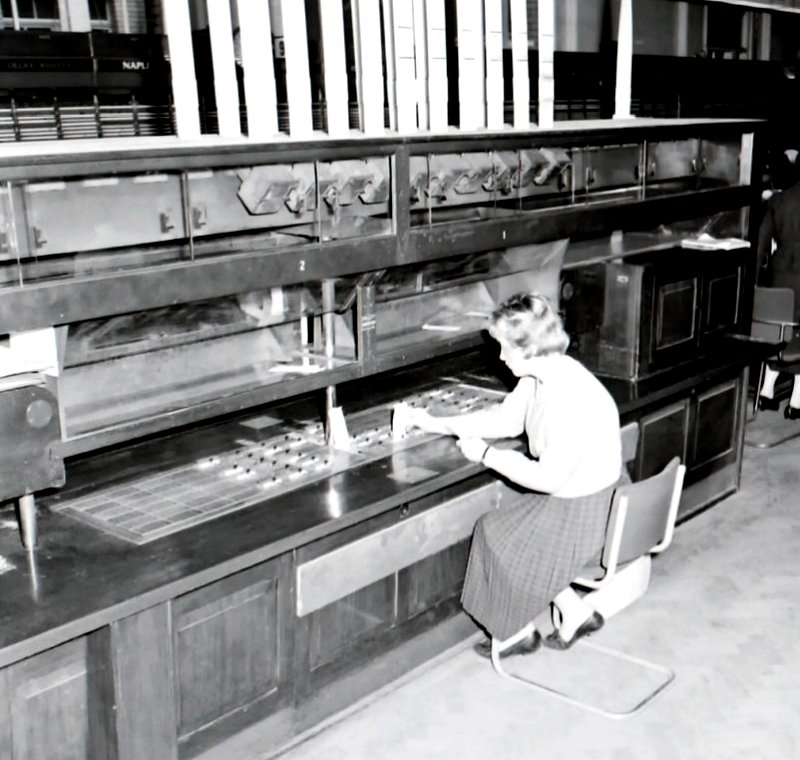

Faraday Building - Continental Exchange (1962)
Sending a ticket

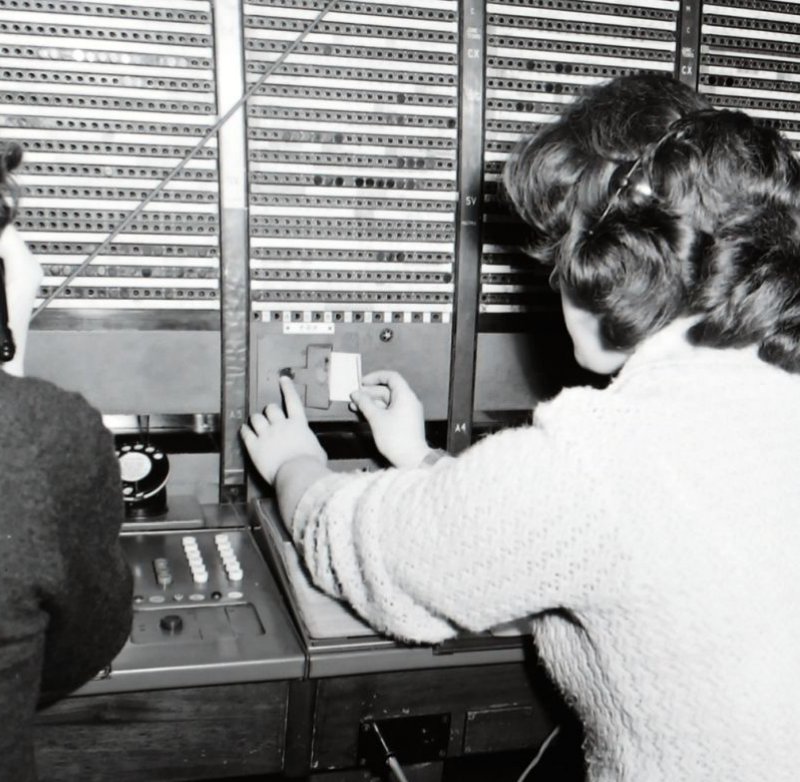

Faraday Building - Continental Exchange (1962)
The operator is sending a ticket.  Above her head is a row of discharge terminals
