PNEUMATIC TUBE SYSTEMS
Installations
This page shows pictures, mainly from the Central Telegraph Office, of pneumatic tube installations and equipment.

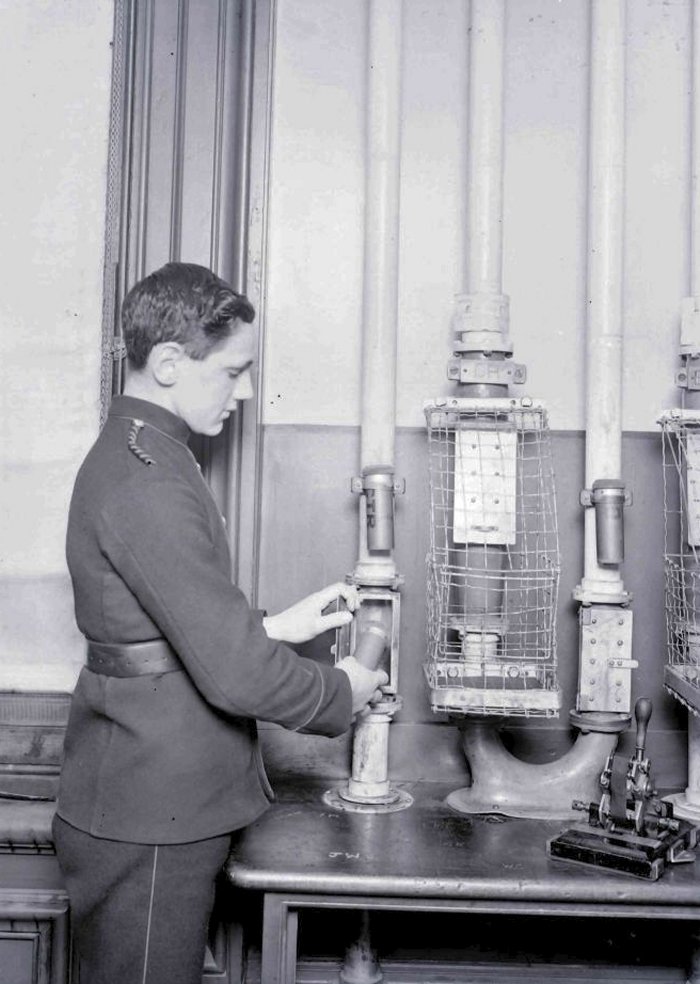

Sending carrier - 1932

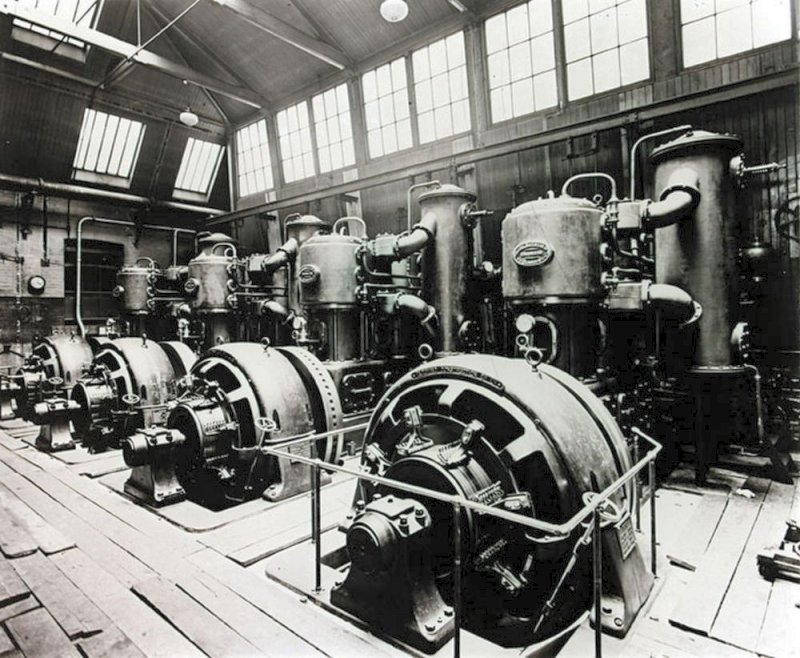

Compressors - 1912

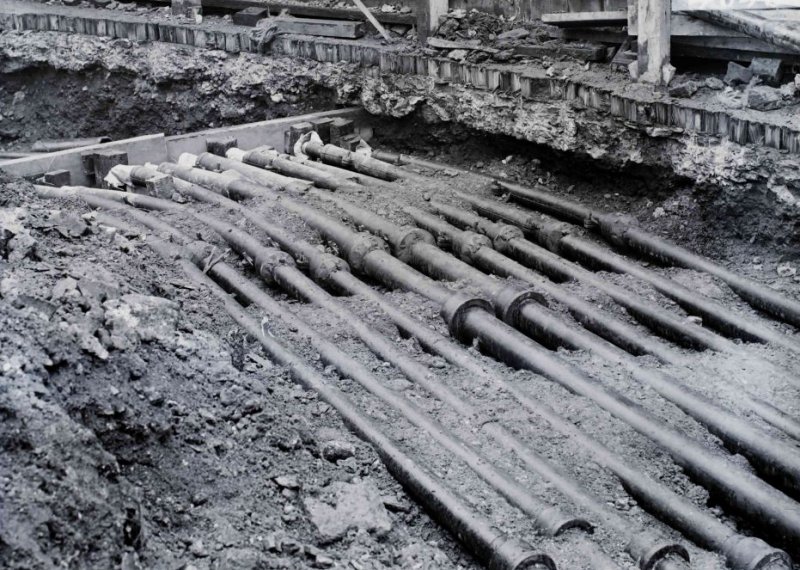

Pneumatic tubes in new formation at the corner of St. martin Le Grand and Gresham St - 1927



Pneumatic tubes

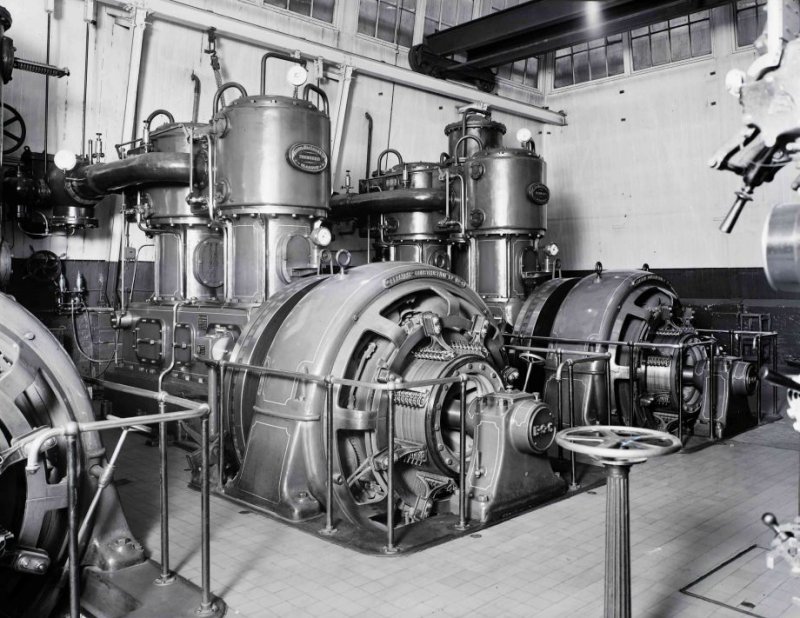

Automatic air compressors - 1934

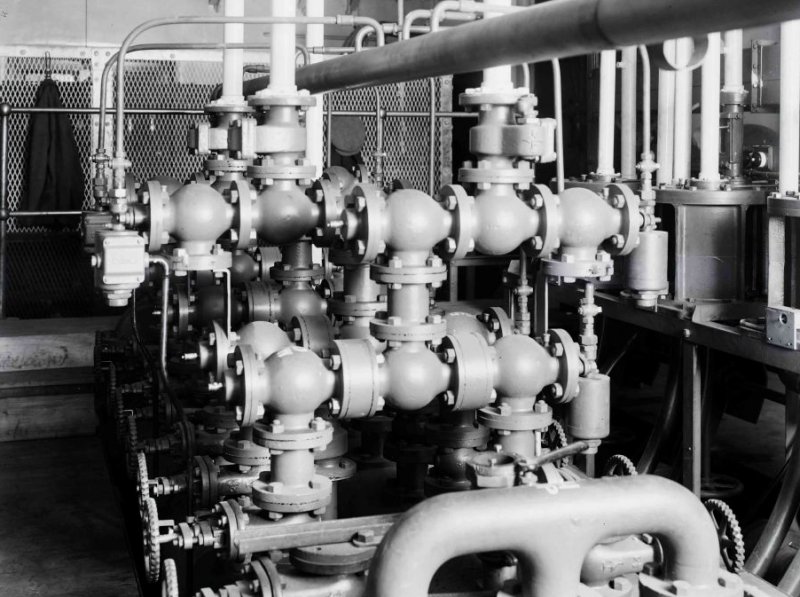

Automatic air control valves - 1934

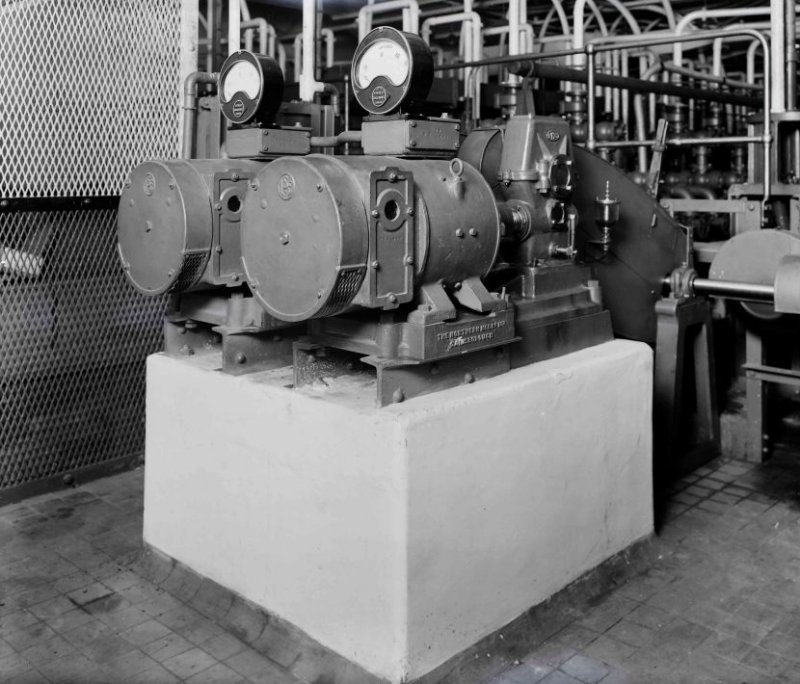

Automatic driving motors for auto switches - 1934



Automatic pneumatic blowers - 1934



Automatic Switchroom - 1934

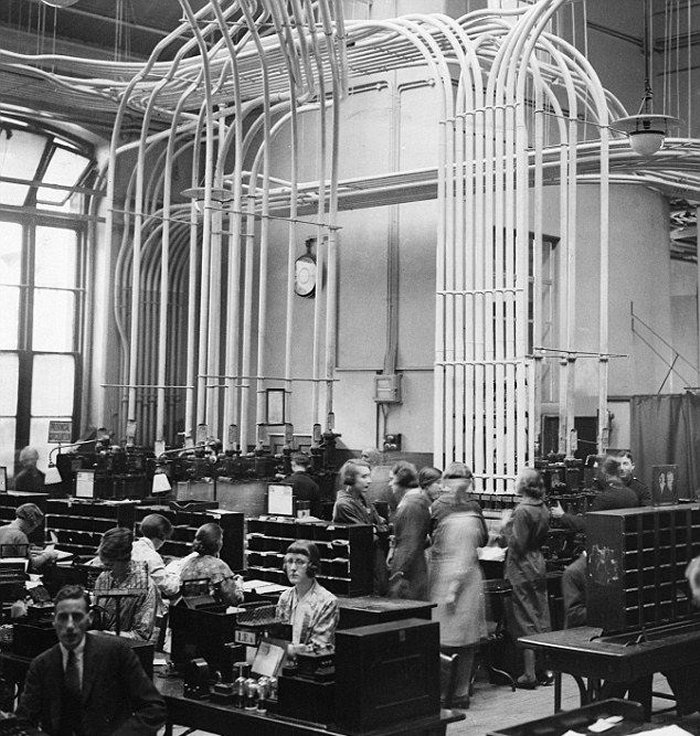

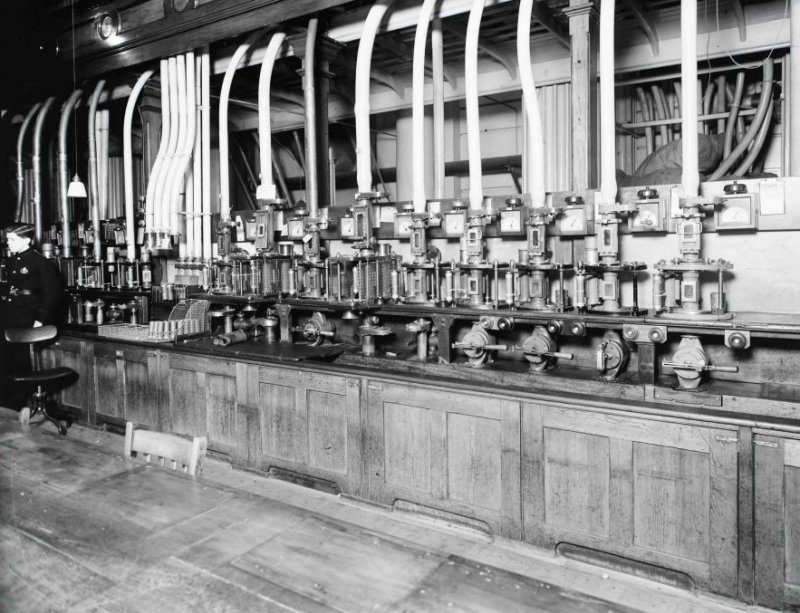

Central Hall tubes - 1934



Despatch and receive tubes - 1934
Behind each tube is a carriage indicator unit



Despatch and receive tubes - 1934
Note the bell press button by each tube to signal to the other end a carrier is in the tube

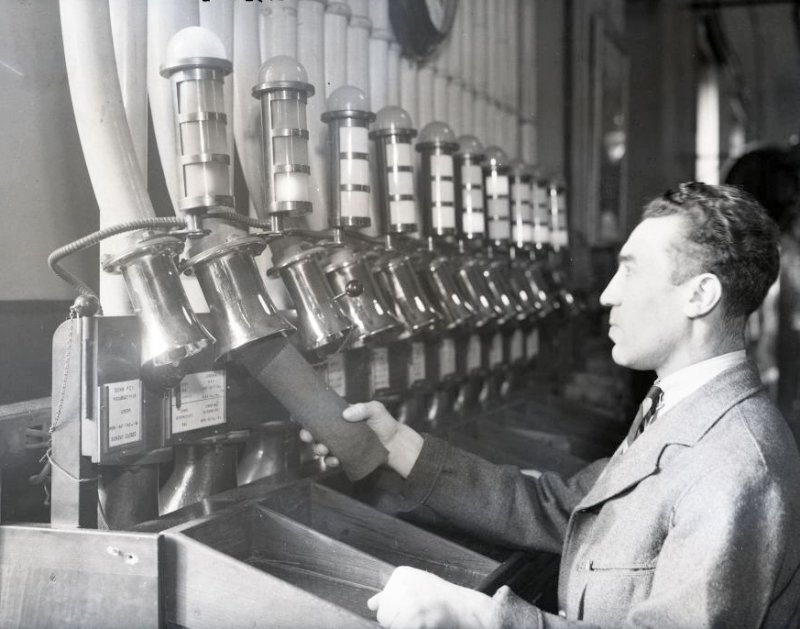

Despatch tubes - 1939



Basement tube room - 1941



Compressor - 1947

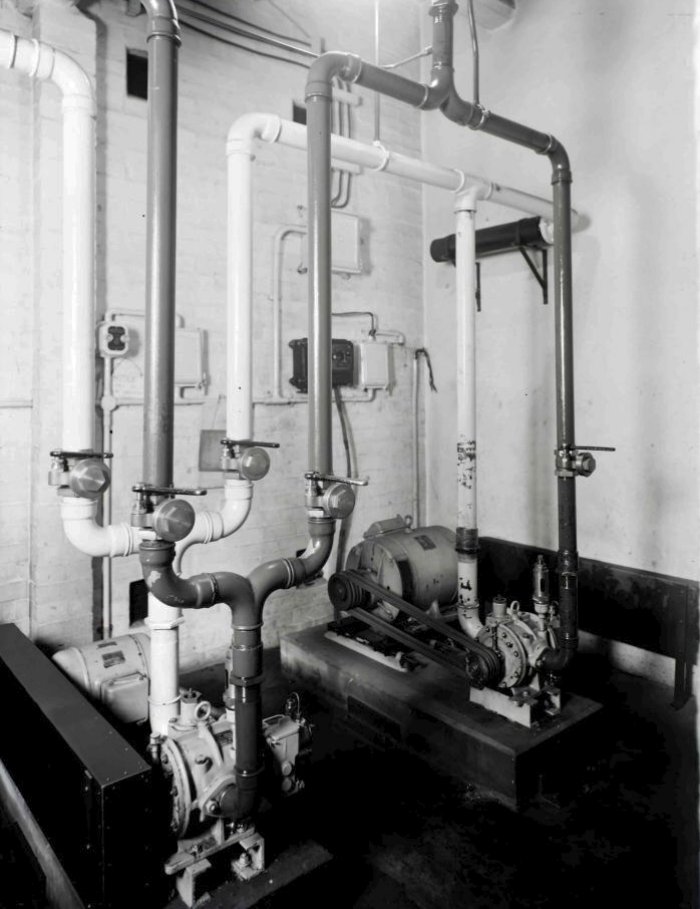

Compressors for Cable and Wireless tubes - 1947

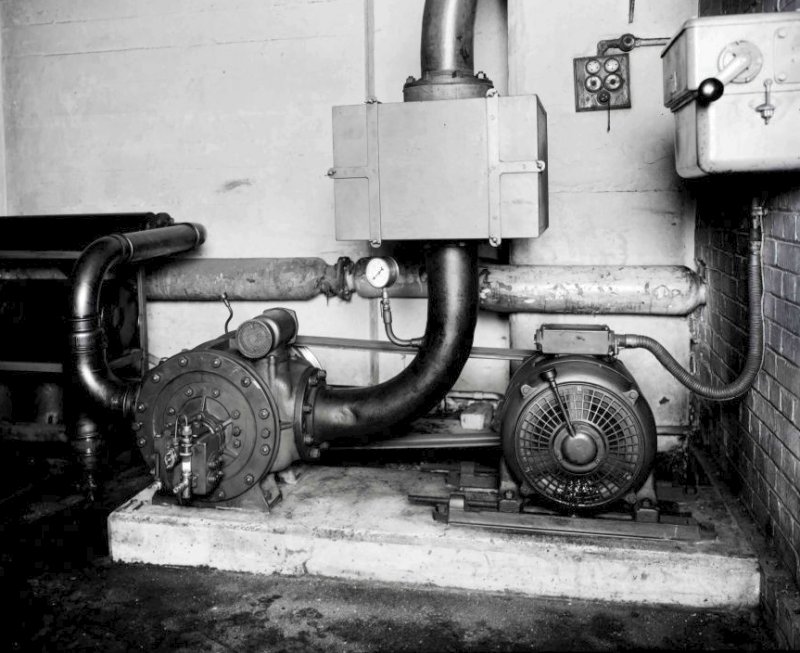

Exhauster

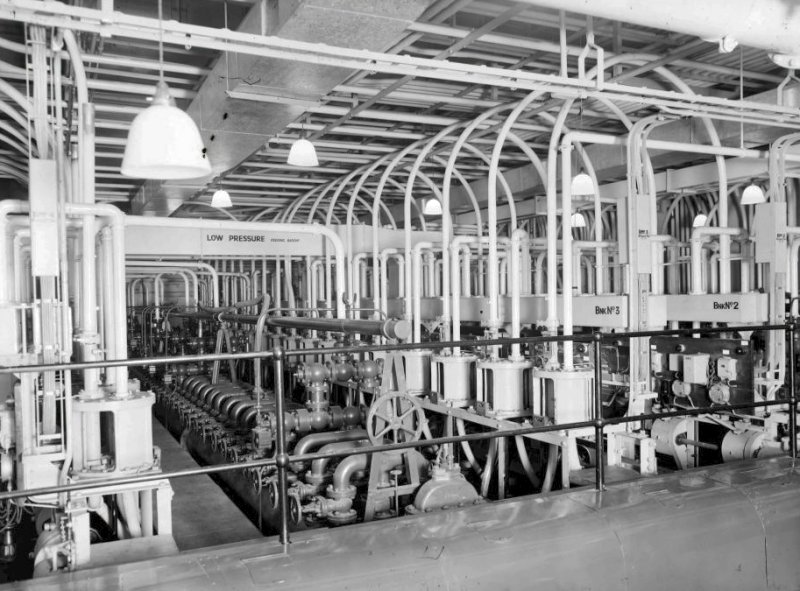

Pneumatic plant room - 1947



Plant room discharge chutes - 1947



Tube room



Sorting desks





Sorting desks
