| Description |
Concrete Mixer, Trailer |
| Manufacturer |
|
| Model |
|
| Type |
|
| Use |
Concrete mixer |
| Fleet Number |
|
| Date of picture |
1965 |

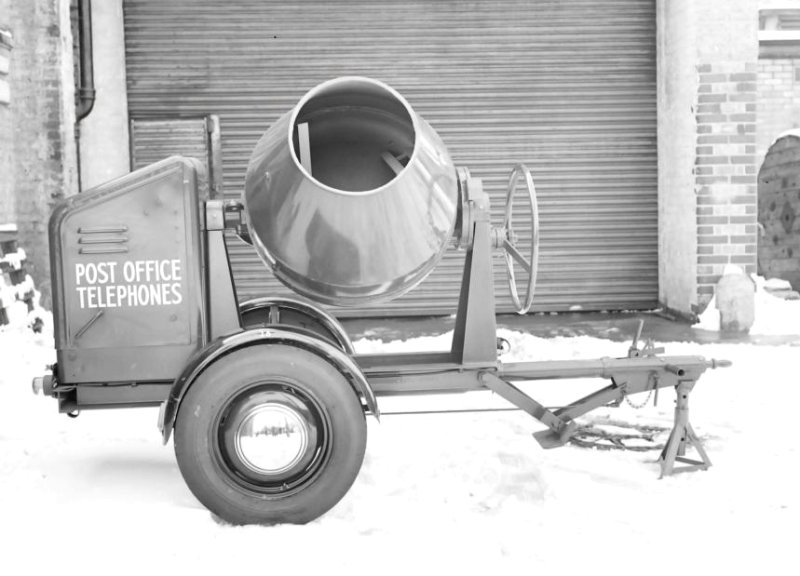

CONCRETE MIXER, TRAILER
Application
Used for general works and the building of manholes, jointing chambers,
foundations for kiosks etc.
General description

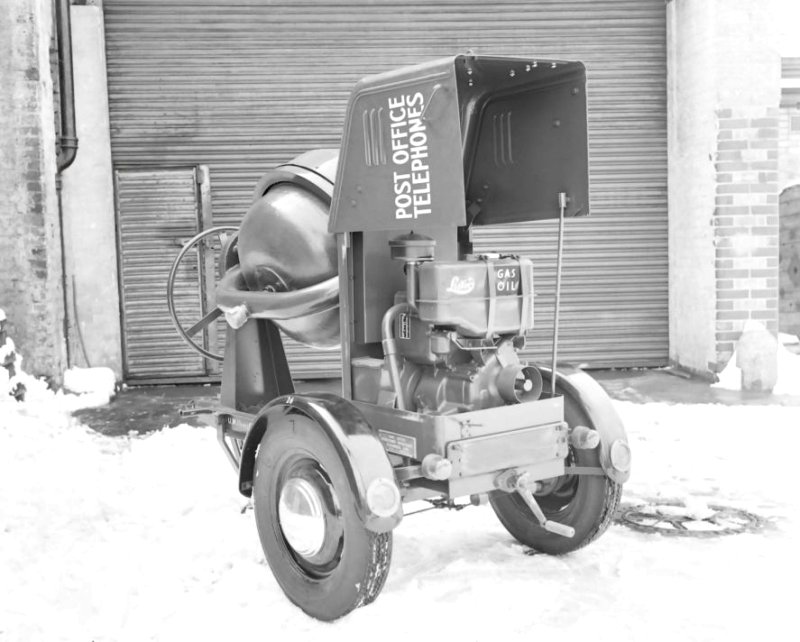

The machine consists of a mixing drum driven by a 11 h.p. petrol engine and
mounted on a two-wheel trailer equipped with over-run brakes.
The starting handle is used to move the engine and mixing
drum along the chassis approx. 18 in. to provide an accessible position of the
drum when filling and discharging, and to automatically lower a front support.
Dimensions
Overall length - Mixing position 7ft. 3ins. and Towing position 8ft. 9in.
Weight
11 cwt. approx.
Fuel consumption
1 pint per hour.
Transport
May be towed by any vehicle equipped with towing hitch.
Capital cost
£130.
Remarks
The trailer should be restored to the towing position before towing. Makes 3.5
cu. ft. concrete per mix.
|
