GIA-TRONICS SENTINEL


Sentinel Weather Resistant Telephone
Flush Mount

The Sentinel telephone is a hands free, vandal and weather resistant and is designed to be fixed to a vertical surface with vandal resistant screws.

The 16 button metal keypad has 0-9 digits, volume control, 2 memory buttons with an on/off button and is available in flush and surface mount box options.  The 18 button version has additional keys: Memory 1, Memory 2 and Volume.

It was also available as a CB telephone or a 1, 3 or 5 button autodialler.  VOIP/SIP and GSM versions are now available.  The autodailer range are now marketed as the Help Point.

  • Flush mount
  • SMART (Self Monitoring And Reporting Telephone) Analogue
  • Stainless steel faceplate
  • Full Dialler metal keypad
  • 2 x Remotely programmable (non-volatile) memory Keys
  • DTMF Dialling
  • Line powered down to 25mA
  • Optional mains supply adapter (Sold Separate)
  • Hands-free operation
  • Weather resistant to IP65
  • Audio-visual ring indication
  • Volume adjust button VOL +/-
  • CE compliant

16 button model data sheet

18 button model data sheet

Range data sheet

VOIP data sheet

Standard keypad Installation and User Guide

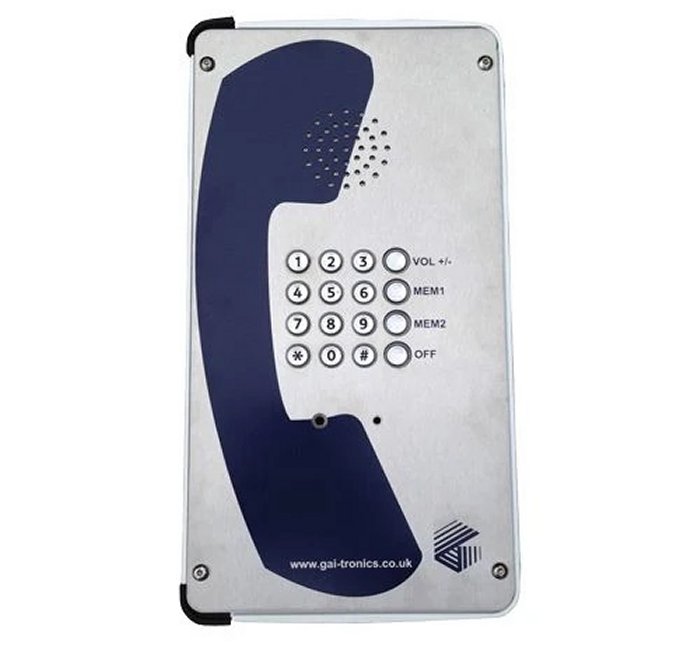

Sentinel - 16 Button
