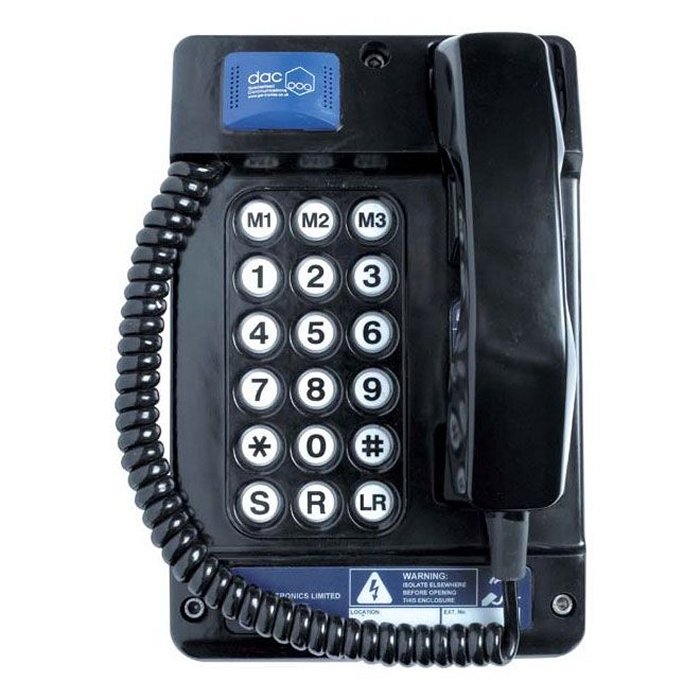

GIA-TRONICS AUTELDAC 4


The Auteldac 4 telephone has secured ATEX approval. Certified for safe operation in hazardous areas, the Auteldac 4 has protection up to IP66. An inductive coupler is fitted to aid the hard of hearing. For hands free telephone use, the Auteldac 4 has the option of a headset.

Certified for safe operation in hazardous areas, the Auteldac 4 body is made from carbon loaded glass filled polyester to eliminate rust and corrosion.

With smooth corners and a low profile to the wall, the Auteldac 4 is ideal for confined areas with lots of action.

Auteldac 4 telephones come complete with an integral ringer with volume control and secondary beacon / external sounder actuator as standard. An inductive coupler is fitted to aid the hard of hearing.

Features such as 'electronic on-hook sensing' and 'electronic tone ringer' enable an enclosure protection up to IP66. Should the handset be left off-hook, the telephone will automatically revert to on-hook state after a period of 6-8 minutes (this option can be disabled).

Features

  • ATEX certified for Gas and Dust
  • CE compliant
  • Carbon loaded, glass filled polyester unit
  • Robust and weather resistant IP66
  • Full keypad with 3 programmable memory buttons
  • Wall or desk mounting
  • Integral ringer
  • 90dB sounder (adjustable)
  • Inductive coupler for hard of hearing

Dimensions:

  • H292mm W190mm D140mm
  • Fixing centres: H270mm / W145mm


Analogue Data Sheet

VOIP Data Sheet

User Guide
