ERICSSON
SWITCHBOARD No. 2200



Type OD 2200
Wall Pattern Switchboards
Common Battery System

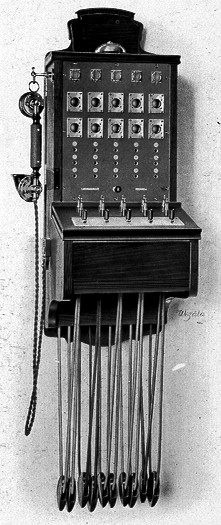

768.jpg (11731 bytes)OD 2200/5+10 shown pictured to the right.

FRAMEWORK

Polished walnut, with the jack and indicator field covered with fibre.

EQUIPMENT
1 x JACK for each Exchange Line.
1 x JACK for each Extension Line.
1 x PAIR OF CORDS with 3-point plugs (see table for number of cord circuits on each board).
1 x SPEAKING AND RINGING KEY for each cord circuit.
1 x RELAY for each cord circuit.
1 x CALLING INDICATOR for each Exchange Line.
1 x CALLING AND CLEARING INDICATOR for each Extension Line.
NIGHT BELL.
NIGHT BELL SWITCH.
GENERATOR. RH 3050, 3-magnet.
MICROTELEPHONE. RE 5057, with cord RS 7102.

NOTE
All the indicators are self-restoring; the Exchange Indicators being of the "Drop" type and the Extension of the "Eyeball" type. These switch-boards are not usually kept in stock.



TYPE No. of Exch lines No. of Extn Ccts No. of cord ccts Height ins Width ins Depth ins Weight in lbs.
OD 2200/5+10 5 10 5 33.45 12.00 13.78 61.75
OD 2200/3+12 3 12 6 33.45 12.00 13.78 61.75
OD 2200/3+17 3 17 8 37.40 15.00 13.78 83.80
OD 2200/7+18 7 18 10 37.40 15.00 13.78 92.60
OD 2200/6+19 6 19 10 37.40 15.00 13.78 92.60
OD 2200/3+22 3 22 10 37.40 15.00 13.78 92.60


Taken from the Ericsson Telephone Catalogue 1914
