ERICSSON

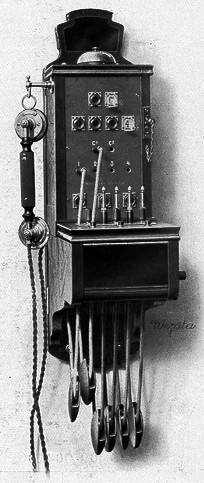

SWITCHBOARD No. OD 1200



Type OD 1200
Wall Pattern Switchboard
Common Battery System


FRAMEWORK

Polished walnut, with the jack and indicator field covered with fibre.

EQUIPMENT
1 x JACK for each Exchange line.
1 x JACK for each Extension line.
1 x NIGHT SERVICE CORD for each Exchange Line with plug at each end.
1 x PAIR OF CORDS with 2-point plugs (see table for number of cord circuits on each board).
1 x SPEAKING AND RINGING KEY for each cord circuit.
1 x RINGING BACK KEY for each cord circuit.
1 x CALLING INDICATOR for each line.
1 x CLEARING INDICATOR for each cord circuit.
NIGHT BELL.
NIGHT BELL SWITCH.
GENERATOR. RH 3050, 3-magnet.
MICROTELEPHONE. RE 5059, with cord RS 7021.

These switchboards are not usually kept in stock.


TYPE No. of Exch lines No. of Extn Ccts No. of cord ccts Height ins Width ins Depth ins Weight in lbs.
OD 1200/1+3 1 3 2 27.56 7.50 12.60 31.95
OD 1200/2+4 2 4 3 27.56 7.50 12.60 35.30
OD 1200/3+6 3 6 4 31.50 8.65 13.40 44.10


Taken from the Ericsson Telephone Catalogue 1914
