ERICSSON
TELEPHONE No's N2515 - N2518 & N 2520



Magneto Telephones


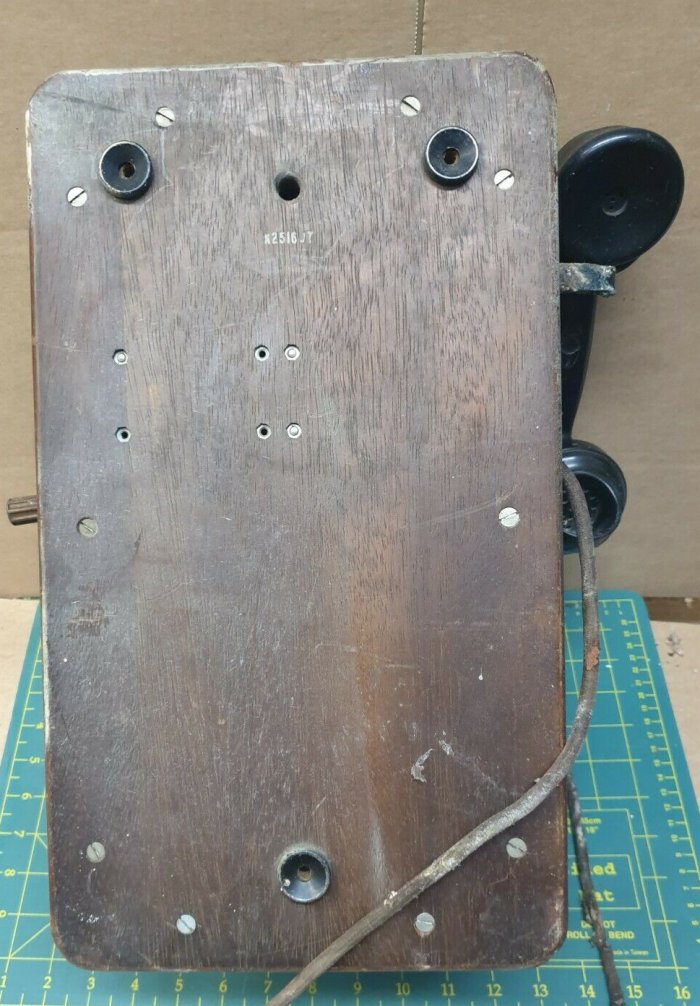

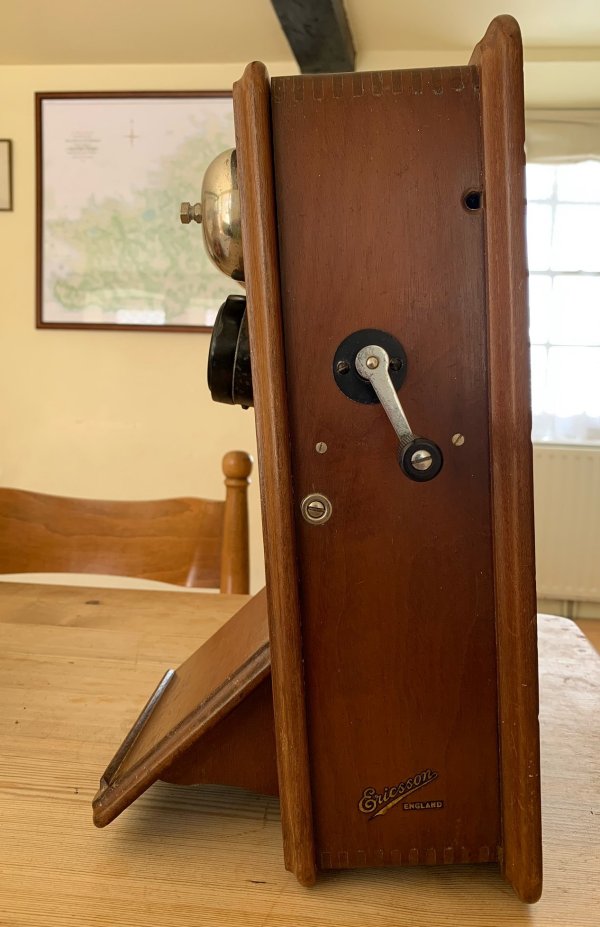

n2515.jpg (10263 bytes)The casework of this instrument is of polished hardwood and incorporates a handy writing desk and a battery compartment measuring 7.25 x 6.5 x 3.25 inches which will accommodate 2 dry or inert cells.

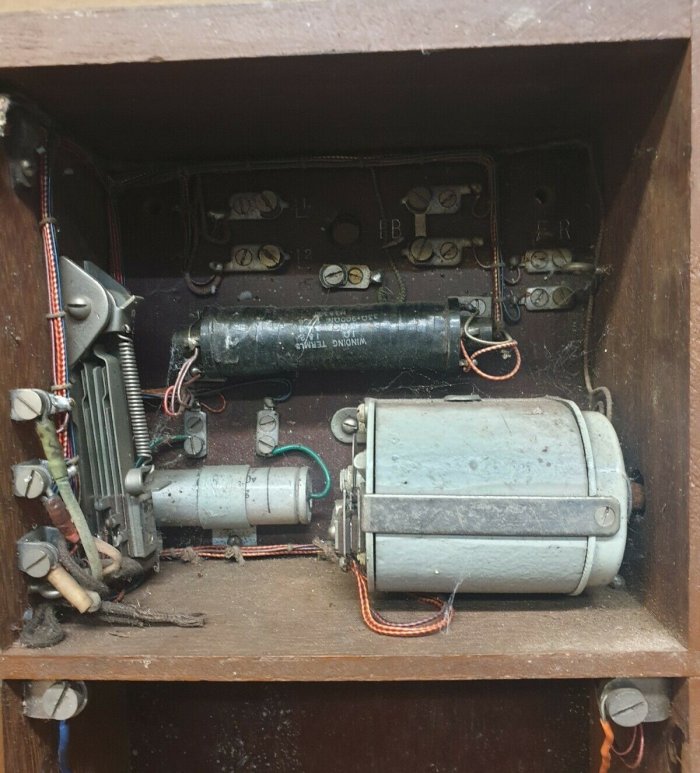

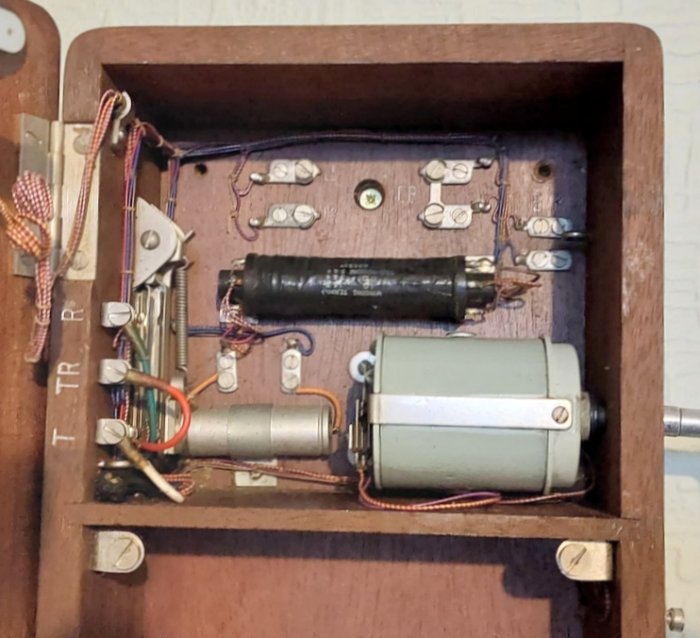

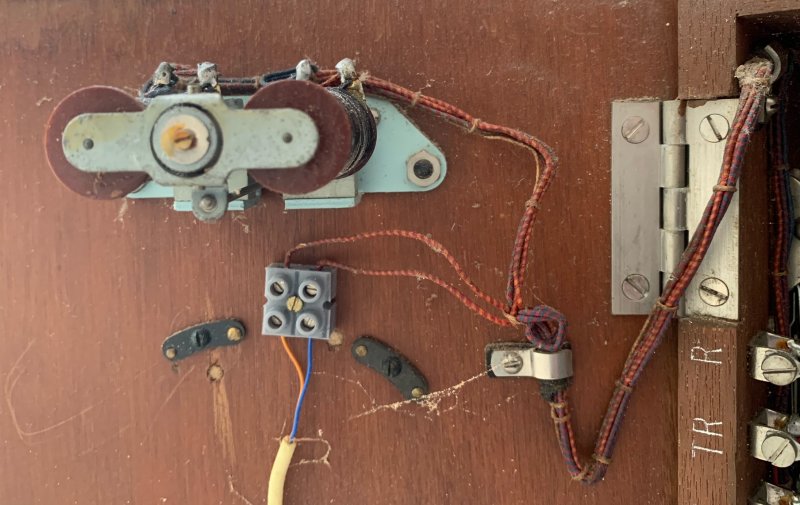

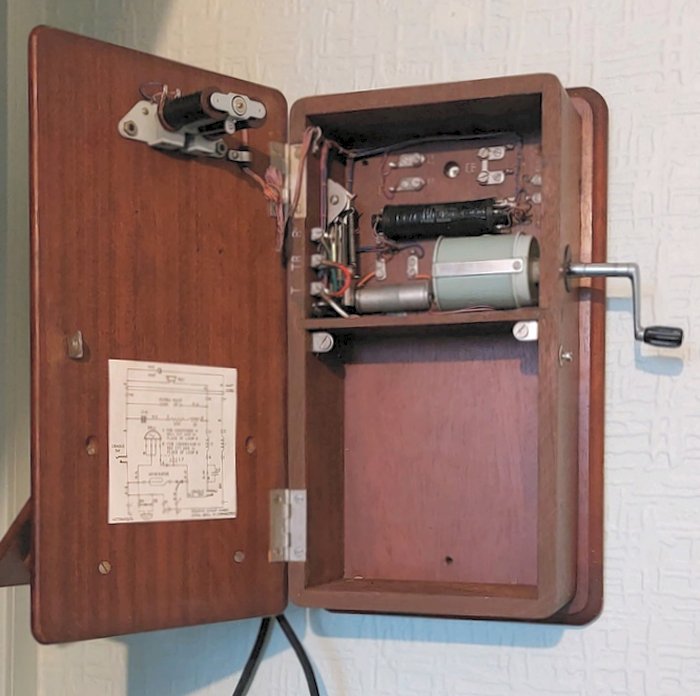

The equipment comprises a compact "alnico" magnet generator, ringer, anti-side-tone induction coil, Bakelite micro-telephone and enclosed terminals.

The wiring is arranged so that a condenser may be readily added in the ringer or receiver circuit as desired.

Telephone N2515 is shown pictured to the right.

Micro-telephone Cord N4021
Receiver N6819
Inset N7752
Earpiece N4443
Mouthpiece N8634
Diaphragm N4400
Generator Handle N56393

Code No.

Generator

Ringer ohms

Safety Condenser ER tags

Dimensions ins

Weight lb

Diagram Introduced

N2515T

Standard 1000 No Yes 15 x 8.75 x 8.75 9.5 N70666 1946

N2516

Heavy Duty

2000

No

Yes

15 x 8.75 x 8.75

9.75

N71254 1947

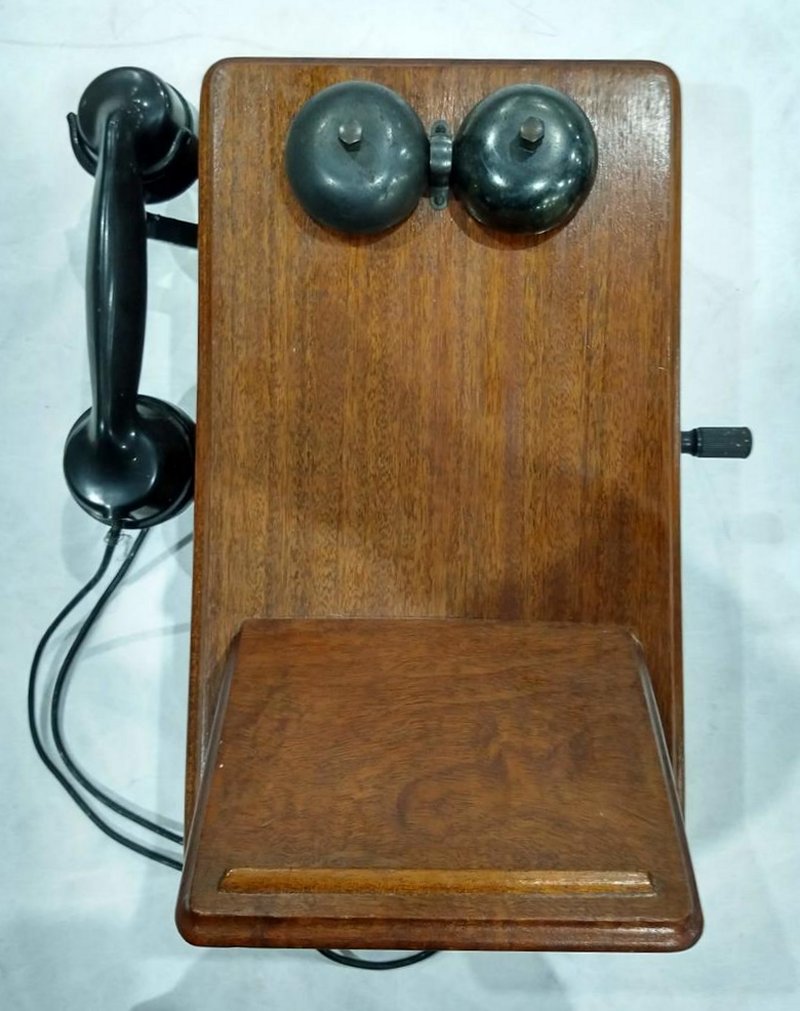

N2517 1 magnet 1000 No No 15 x 8.75 x 8.75 11.25 N71084 1946
N2518 Mining use 2000 Yes Yes 15 x 8.75 x 8.75 11 N71921 1948
N2519 Standard 1000 Yes Yes 15 x 8.75 x 8.75 11 N75199 1951
N2520A1 1 magnet 2000 No No 15 x 8.75 x 8.75 N79096 1953

See also section on N2516 and N2519


MINING TYPE
CERTIFIED SAFE FOR MINE SURFACE USE UNDER COVER
CERTIFICATE T/Tel. 66

This instrument has the same appearance as that illustrated above, but is designed and equipped for mine work, and has been approved by the Mines Department as intrinsically safe, and may, therefore, be connected with the underground circuits.

In common with other certified apparatus its connection and use is governed by the Telephone and Signalling Order S.R. & 0. 1938-1407.

It is intended solely for use on the surface and under cover, as in offices, etc., where an ironclad telephone is out of place. It is not suitable for use below ground or in exposed positions.

Mines Department Type - Model N2518 and N2519.

Taken from the Ericsson catalogue, edition No. 49
