Battery Ringing Wall Telephones (used for railway
signalling purposes)
All have the handset or receiver fitted on the left hand side of the case and
the bells are DC type (100 ohm).
Normally used where call exchange and code ringing facilities are
required.
The N1178 is fitted with protectors and a 100ohm DC bell..
Click here for the Ericsson Bulletin Article on
Battery Ringing Telephones
Code No. |
No. of Buttons |
Position of Button |
Position of Bell |
Introduced |
Type of handset |
Customer |
N1165
|
1 |
Front |
Bottom |
1933 |
Bakelite |
GWR |
N1166
|
1 |
Front |
Bottom |
1932 |
Fixed Trans |
GWR |
N1167
|
2 |
Front |
Bottom |
1932 |
Fixed Trans |
GWR |
N1168
|
1 three pos switch |
Front |
Bottom |
1932 |
Fixed Trans |
Southern railway |
N1169 |
1 |
Side |
Bottom |
1933 |
Fixed Trans |
LM & S |
N1170 |
1 |
Side |
Bottom |
1932 |
Fixed Trans |
LM & S |
N1171
|
1 |
Side |
None |
1932 |
Fixed Trans |
|
N1172 |
2 |
Front |
Bottom |
|
Fixed Trans |
|
N1173
|
1 |
Side |
Bottom |
1934 |
Bakelite |
|
N1174
|
1 |
Side |
Bottom |
1940 |
Bakelite |
LNE |
N1176
|
2 |
Front |
Bottom |
1939 |
Fixed Trans |
GWR |
N1177
|
2 |
Front |
Bottom |
1940 |
Bakelite |
GWR |
N1178
|
1 |
Front |
Bottom |
|
Bakelite |
GWR |
N1179
|
1 three pos switch |
Front |
Bottom |
1945 |
Bakelite |
|
N1180 |
- |
- |
Top |
|
Fixed Trans |
RSC 1002 |
N1181 |
4 |
Front |
Bottom |
|
Bakelite |
BR 1002 type |
N1182 |
2 |
Front |
Bottom |
1948 |
Bakelite |
BR 1001 type |
N1183 |
1 |
Front |
Bottom |
1953 |
Bakelite |
BR 1004 type |
N1165 - N1169 are of a similar design to N1170
Pictures

N1168

N1168

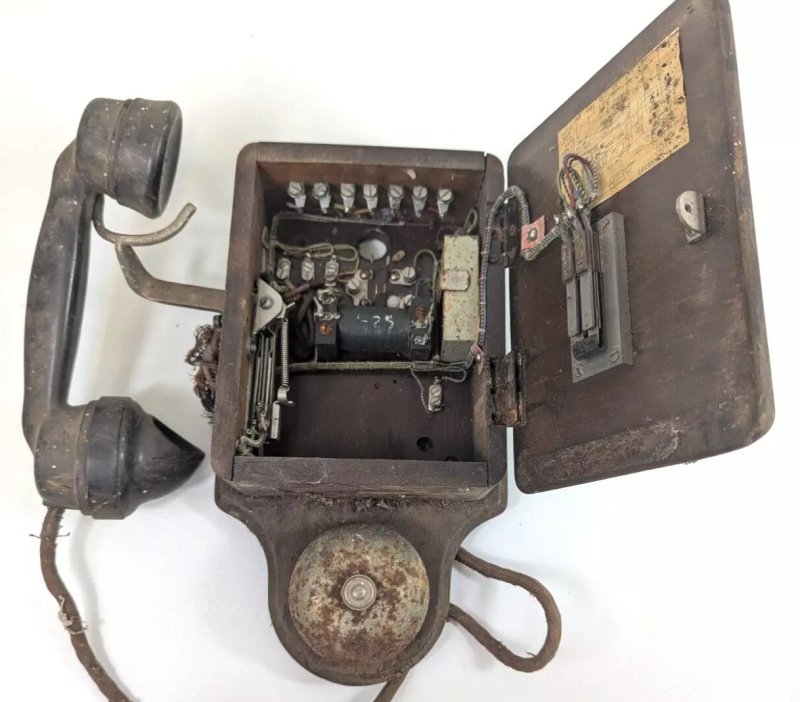

N1165

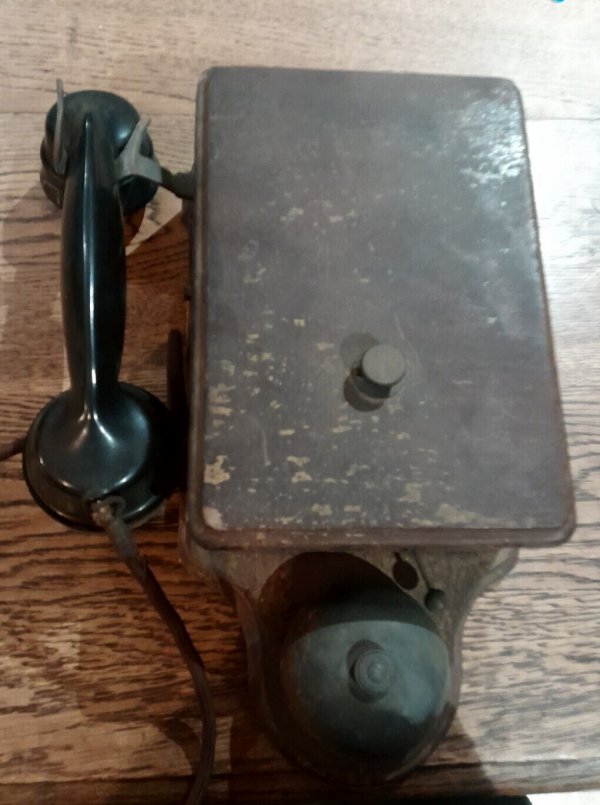

N1178

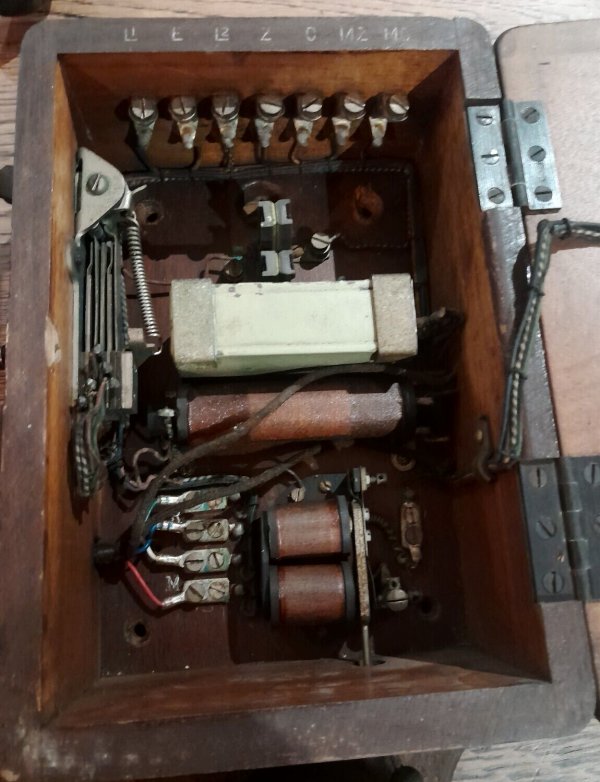

N1178
|
