TELEPHONE No's N1046 - N1049

Automatic Telephones

This intermediate set allows an extension the use of the exchange line, as well as intercommunication, and is ideal for the executive with secretary.

The switching mechanism consists of four inter-acting push-button keys in the top panel above a window through which "engaged" is displayed by the operation of an indicator-relay during extension-to-exchange conversations.

Other fitments include an "alnico" generator for internal signalling, a ringer for exchange calls (extension calls operate a ringer in the wall case) and a dial, normally of  P.O. pattern, but other types can be fitted.

Extension-to-exchange calls can be made secret or non-secret from intermediate and an audible signal at their conclusion can be arranged if desired.

A maximum line loop resistance of 800 ohms ensures satisfactory working.

These telephones have Code Nos. N1047H (intermediate) and N1048H (extension).

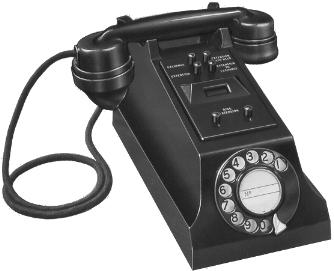

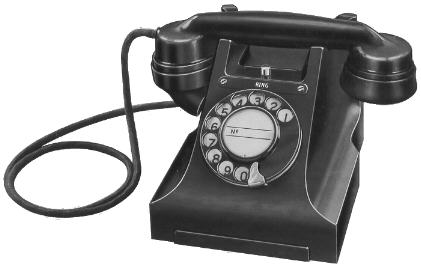

N1047H (intermediate)   N1048H (extension)

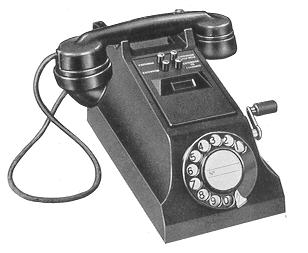

N 1046H Type
n1046h.jpg (14243 bytes)A small battery is required for speech current during extension-to-intermediate conversations.

Inset N7752
Mouthpiece N8634
Earpiece N4443
Diaphragm N4400
HMT cord N4021
Terminal cord N4337
Condenser N3701B
Generator handle N70900

Code No. N1046H includes wall case N3114.

The wall case is fitted with a magneto bell.

Overall dimensions
Telephone: 12 x 9.25 x 6.25 inches
Weight 10.3 lb.

Wall case: 8.25 X 6.25 x 2 inches
Weight 3 lb.

N 1049H Type

This is a standard auto set adapted to accommodate an "alnico" generator for calling the intermediate station and contains a 1000-ohm ringer. The automatic dial is used for calling the exchange.
Condenser N3679
Generator handle N71541
Terminal cord N4317

Overall dimensions: 8 x 9.25 x 6.5 inches.
Weight: 7.1 lb.

Note - Equivalent sets for short distance working, with one or two extensions, and fitted with push-buttons for battery signalling, in lieu of  "alnico" generators, can also be supplied.

Taken from the Ericsson Telephone Catalogue, edition No. 49

N1048H40 in Black was supplied to the Australian Post Office - this telephone had a coiled cord.  For the APO CB models go to N1321.

N1046H3T and N1047H3T were fitted with a Dial No. 24C.

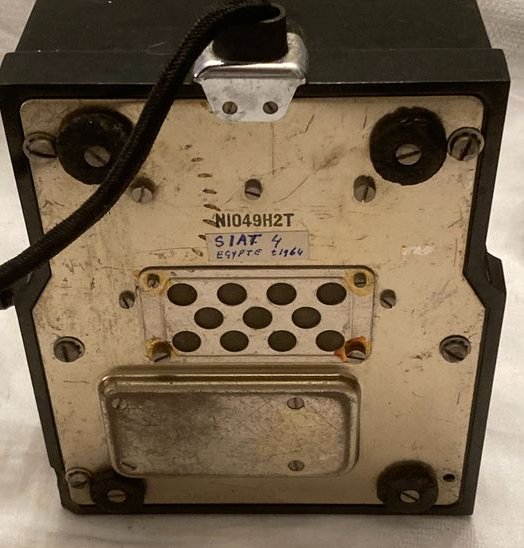

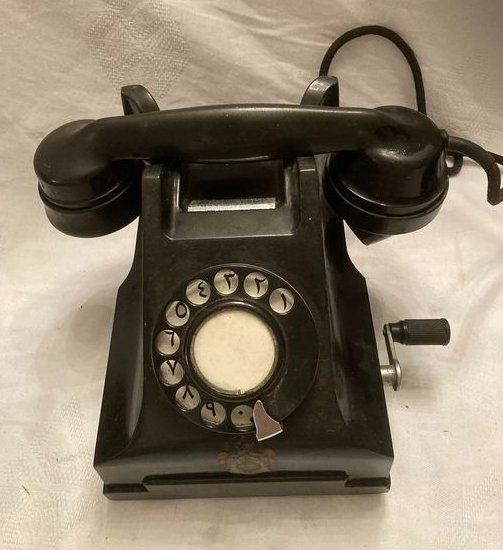

N1049H2T probably made for Egypt.

Click here for an article from the Ericsson Bulletin

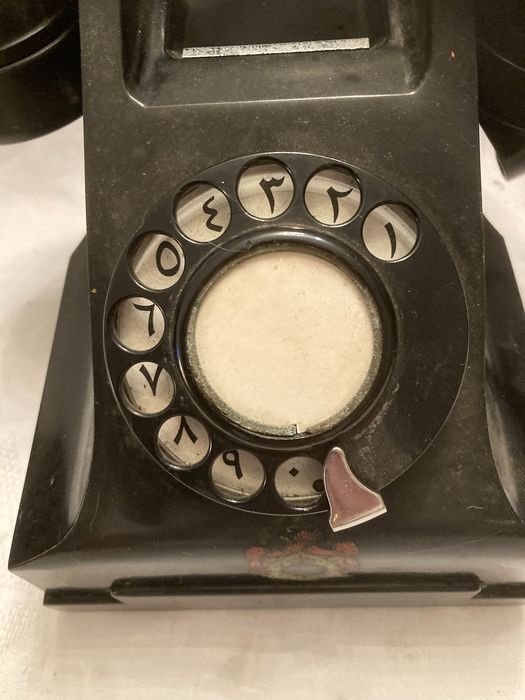

Note Egyptian dial
