L. M. ERICSSON
TELEPHONE No. 305


TELEPHONE - WALL
MAGNETO
TERMINAL - STATION TELEPHONE

No. 305
This instrument is of the small size, and is fitted with fixed transmitter No. 570, two-magnet generator No. 481, which will ring satisfactorily through the 1000 ohm bell of the instrument and a line resistance of 5000 ohms. The receiver No. 549, with cord No. 2036, is of the same construction as is used for hand micro-telephones.

A separate battery box must be used, and box No. 420, which call be fixed onto the instrument, will be found suitable.

Weight 8.6 lbs.

Price £2 16s.

See also No. 306, No. 310, No. 311.

No. 305 was renumbered as the AB 100.

The No. 306 is similar to the No. 305 except that it has a three magnet generator.



Taken from the Ericsson Telephone Catalogue 1903 and also in the 1897 Catalogue

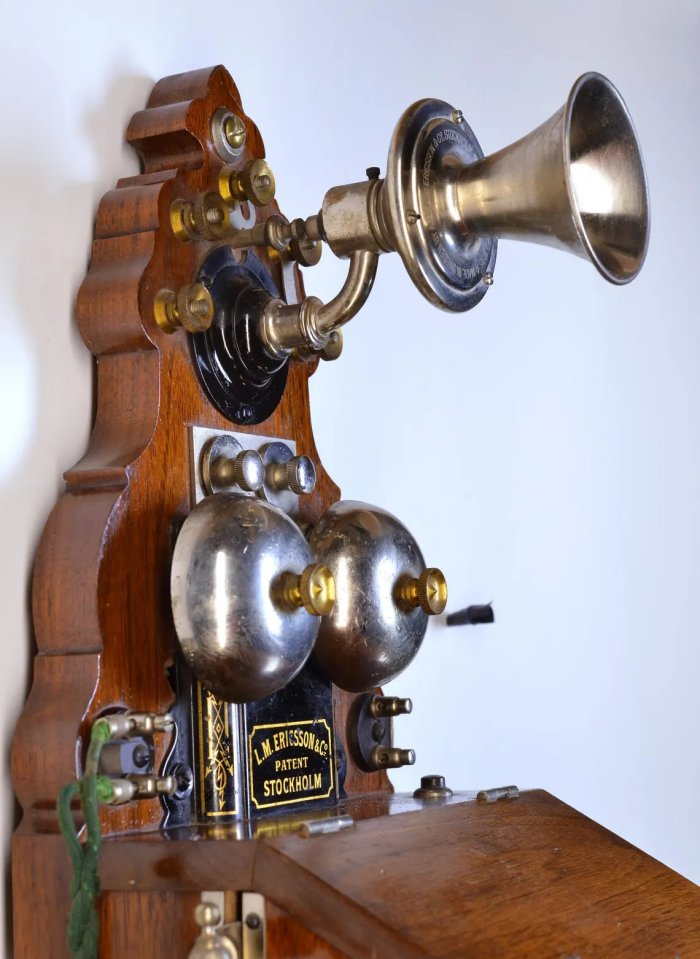

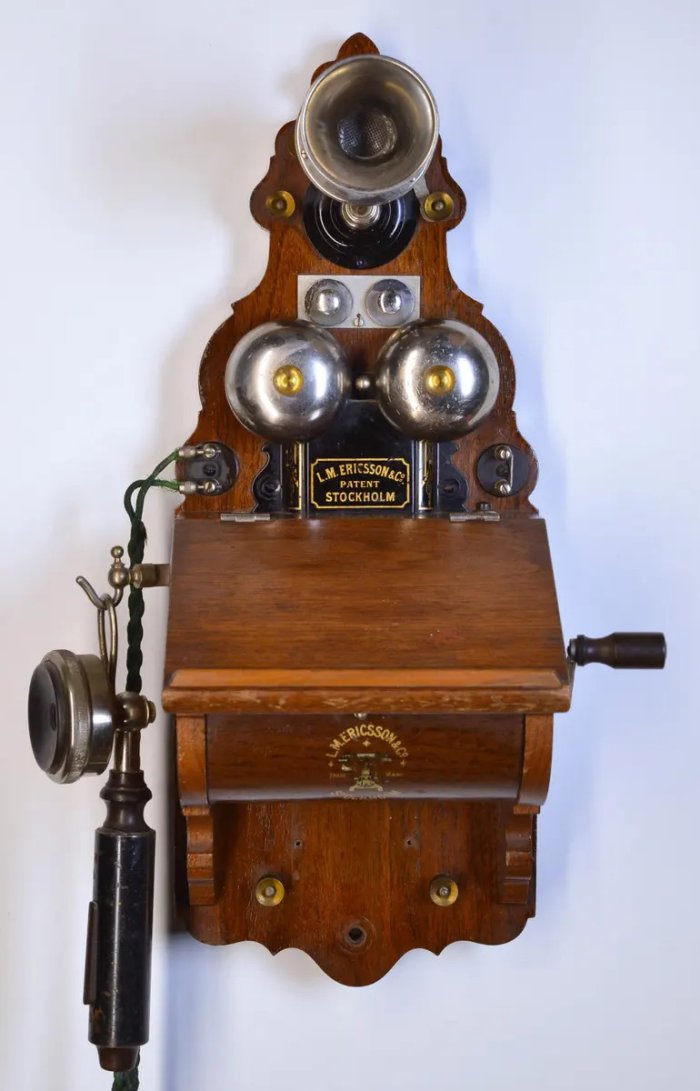

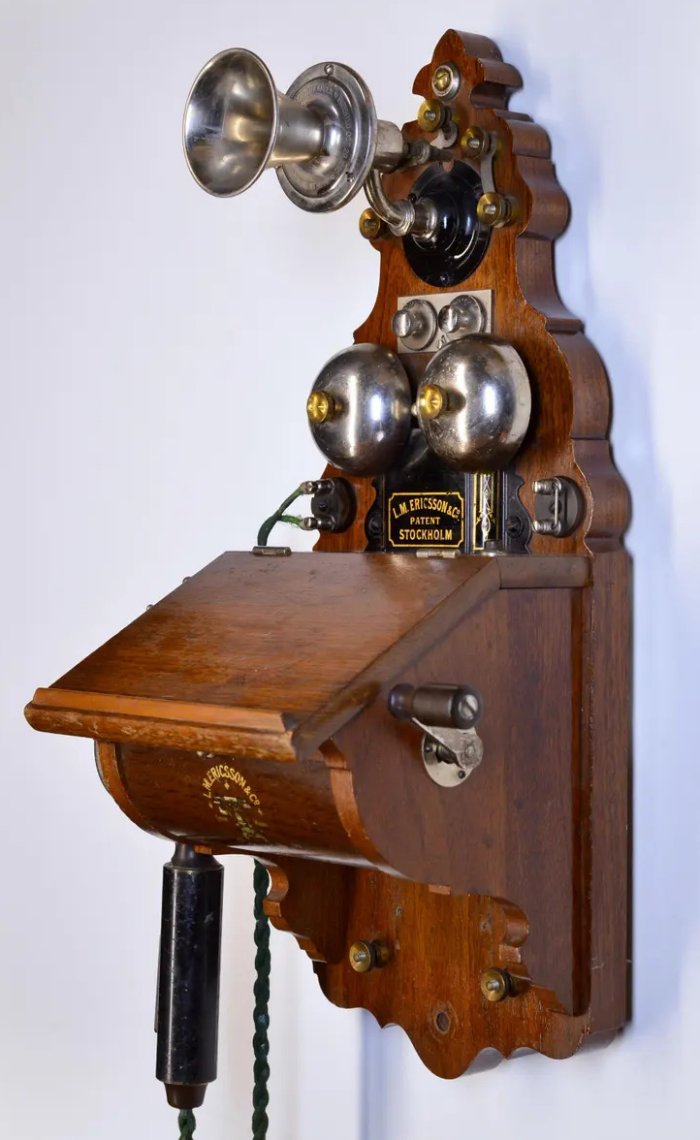

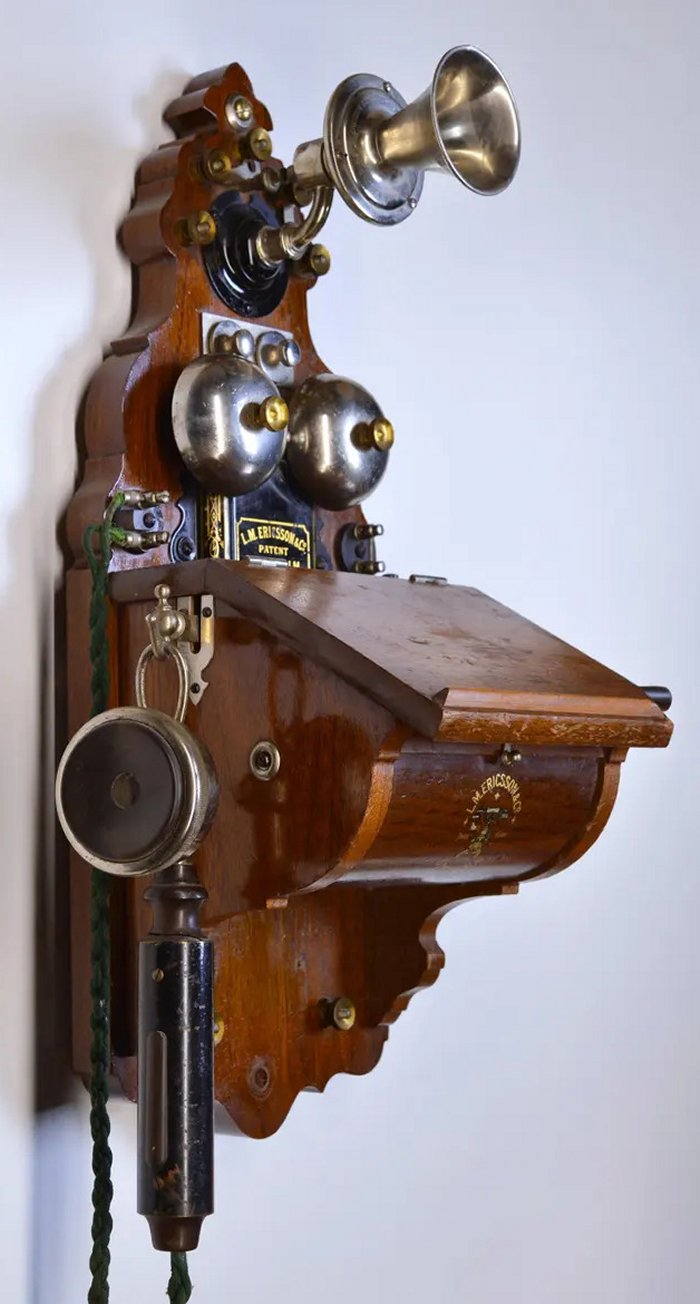

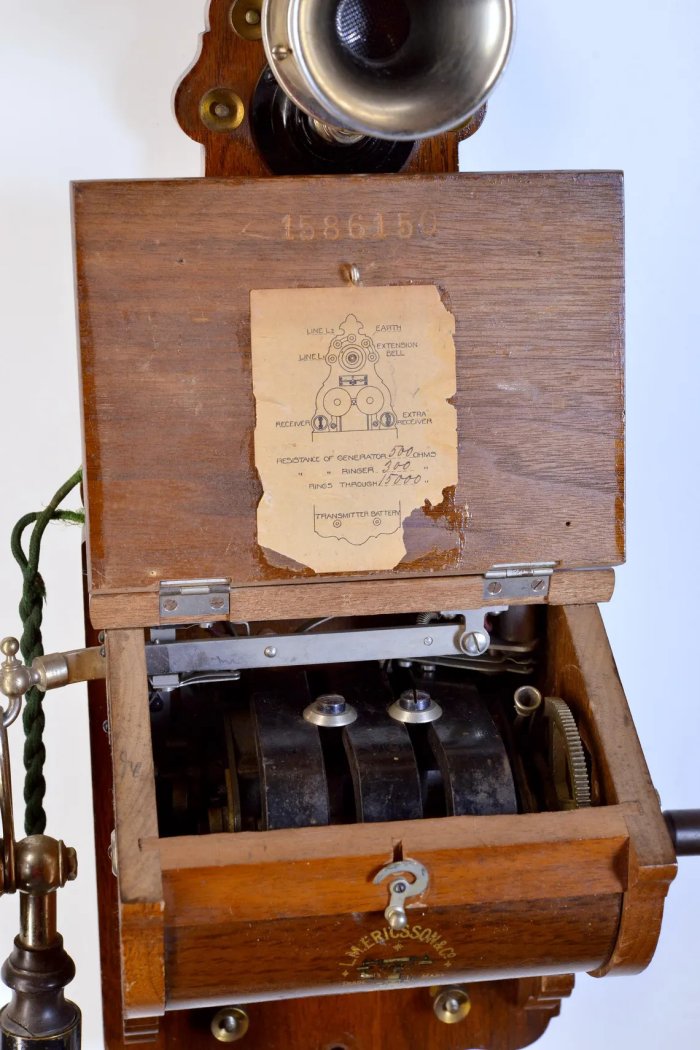

The telephone below was manufactured in 1918
