TELEPHONE - TABLE
Single station telephone for intercom systems

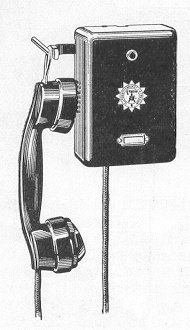

DER 1101 (replaces HC 130)
 This
device is intended to be used as a secondary device for the devices
DEH 1010, DEH 1020,
DEH 1110 and DEH 1120.
It was used in the places where it is sufficient to have a connection with a
main telephone but not with other telephones in the facility.
This telephone has a cover of black lacquered sheet metal with a signal
press button.
Parts:
Microphone RLF 1014 made of black Bakelite with microphone capsule RLA 1004,
40ohms, and string TRS 1302, 1250mm.
Transformer RCL 10201.
Direct current ringer KLD 1003, 100ohms.
Line cord TRS 1502, 1250mm.
Dimensions:
Height 166mm, width 115mm for the bottom of the device plate.
Weight 1.6 kg.
Taken from the L. M. Ericsson Catalogue
No. 610 (1939) - Swedish Translation
|
