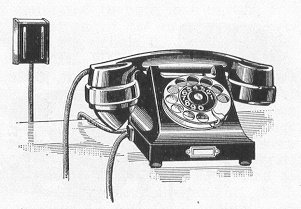

TELEPHONE DBK 2101


TELEPHONE - TABLE
Side device for automatic CB systems

DBK 2101 (replaces the DE 3010)
A telephone side device intended to be used together with a standard device for automatic CB system, when two devices are to be connected to the same line.

The device is similar to DBK 2001 but is equipped with a dial.

Parts:
Microphone RLF 1001 made of black Bakelite with microphone capsule RLA 1001, 200ohms, and Line cord TRS 1302, 1250mm.
Transformer REK 10 104.
Dial RCA 1002.
Capacitor RKA 7010, 1uF.
Line cord TRS 1302, 1250mm,
Wall bracket NEF 1009.

Dimensions:
Height 118mm, width 233mm, depth 152mm.

Weight 1.7 kg.

Taken from the L. M. Ericsson Catalogue No. 610 (1939) - Swedish Translation
