L. M. ERICSSON
TELEPHONE AB 100


TELEPHONE - WALL

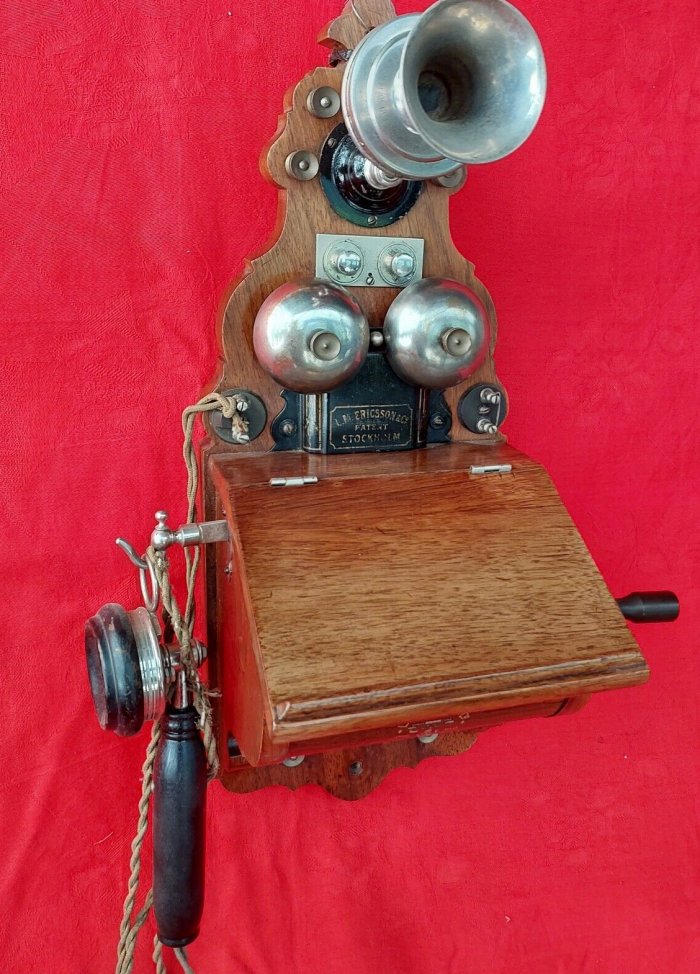

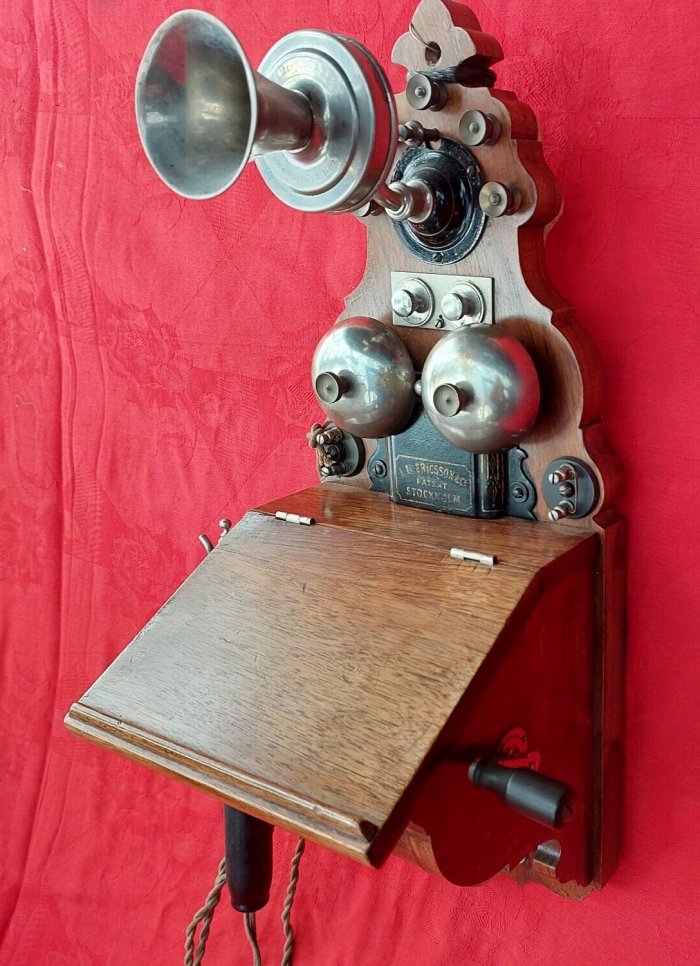

Magneto telephone

AB 100 (Old Catalogue No. 305)

Framework polished walnut.

Transmitter RC 120 on arm RC 550.

Receiver RD 200 (No. 549) with cord RS 4700 (No. 2036) suspended on switch-hook.

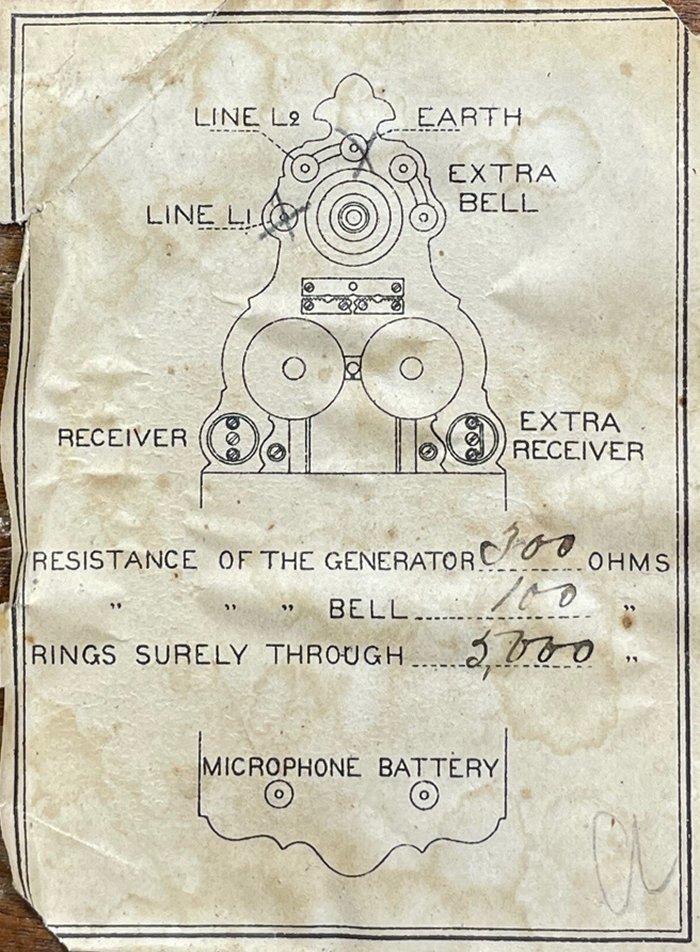

Generator RH 2100, 2-magnet (300 ohms), which will ring satisfactorily through the ringer and a line resistance of 5000 ohms.

Ringer: 100 ohms resistance.

Height of Backboard: 445 mm.
Width of Backboard: 170 mm.

Weight 4.0 kg.



Taken from the Ericsson Telephone Catalogue 1905 and 1912
