Australian Post Office
Telephone No. 8 - Common Battery (Ericsson Type)

Telephone, Common Battery, Table, (Ericsson Type)

A British Ericsson C.B. candlestick phone, their Model N1350.  An earlier version used the Ericsson drum transmitter, but it was soon replaced with the solid back transmitter shown here.  A BI&H version of the Ericsson is the Telephone No. 12.

This telephone was later reclassified as the Telephone No. 36.

Taken from Bob's Old Phones

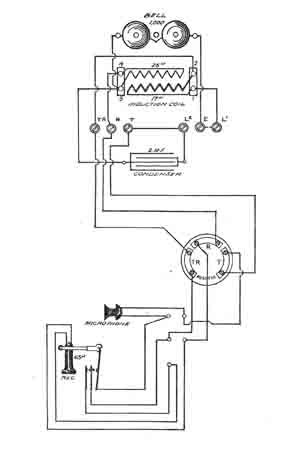

Circuit Diagram

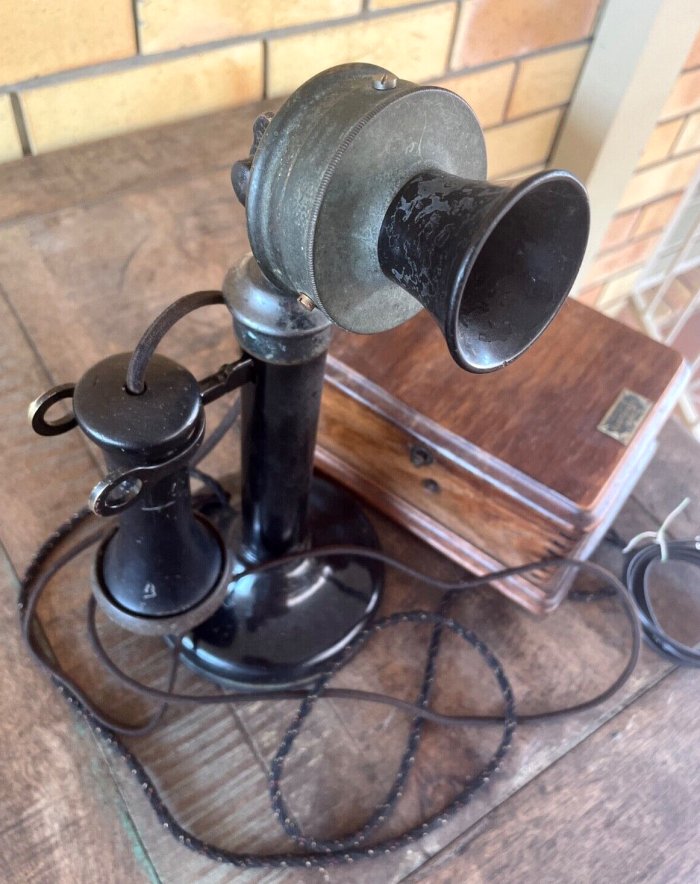

Early model with drum style transmitter
The front of the transmitter would be rotated occasionally to stop packing of the carbon granules
