Adaptors, Shared Service

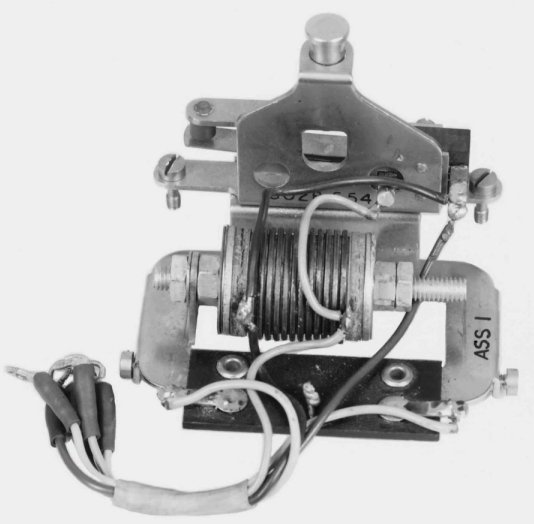

Adaptors, Shared Service No. 1
Used on a Telephone No. 321 for Shared Service working.
Drawing - 90511

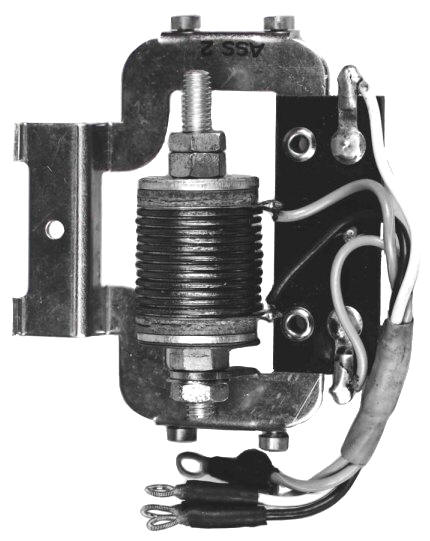

Adaptors, Shared Service No. 2
Used on a Telephone No. 321 for Shared Service working when used on extension plans.
Drawing - 90512


Adaptors, Shared Service No. 3
Based on a Switch No. 5A-1 and a Thermistor No. 1A
Used only with the Telephone No. 706.
Drawing - 91266

Click on picture to enlarge



Adaptors, Shared Service No. 4
Used on a Telephone No. 710.
Drawing - 91605



Adaptors, Shared Service No. 5
Drawing - 91636



Adaptors, Shared Service No. 6
Drawing - 91637



Adaptors, Shared Service No. 7
Drawing - 91894



Adaptors, Shared Service No. 8
Drawing - 92126
