ERICSSON
TELEPHONE No. N1906



Plan-Etelphone
Systems

n1906.jpg (9866 bytes)Systems 1 and 3 described in the following pages represent simple exchange connected extension plans, providing a low-cost dependable telephone service. They are particularly suitable for small organisations, and fulfil all main requirements for extension plans covering secretarial, parallel-extension, external-extension and dual exchange line working. Connection can be made to any type of automatic or C.B. exchange, public or private.

The Plan Etelphone
The Plan Etelphone is the basic instrument for all extension plans and is a variant of the Etelphone (see catalogue sheet No. 7145). Desk and wall mounted versions are available. The instrument case and the handset are moulded in high-impact plastic and produced in black, ivory and two-tone grey. Colours are virtually light-fast, ensuring a close colour match of replacement parts.

The handset cord is the coiled extensible type, sheathed in p.v.c. and coloured to match the telephone. Instrument colour matching also applies to the desk block and its associated line cord, provided the number of line-cord leads does not exceed six. In excess of this number the desk block and line cord are provided in elephant-grey. A carrying handle and performance regulator unit are included in the instrument.

The dial (when fitted) has a clear plastic finger plate, standard numbering (i.e. 1 to 0) and transmits 10 p/s with 2:1 break/make pulse ratio. Alternatively, dials can be supplied with any desired numbering, pulse speed and ratio.

Main Features
Press buttons arranged in line above the dial are locking and/or non-locking and up to four in number.  Locking press buttons are arranged to have:-

  • Automatic release after depression of the switch-hook or another in-line locking press button.

  • Manual release by means of an integral sliding cap. (Note: a press button with this action provides simple on/off switching for such purposes as instrument bell control.)

  • A fifth press button is incorporated to the right above the dial when transfer or recall facilities are required.

In-line press buttons are forest green on ivory telephones and elephant-grey on black and two tone grey instruments. Dummy
press buttons, when fitted, are the same colour as the handset.  Visual signalling is provided, the lamp lens being accommodated in the left-hand area of the case above the dial.

Audible signalling is by a.c. bell and buzzer. Either or both units may be incorporated in the telephone according to the extension- plan requirements and can be supplemented by similar wall mounted units. The a.c. bell signals incoming calls from the main exchange. In-built transistor ringing generators provide a.c. ringing current for external-extension signalling. The d.c. buzzer signals calls between internal extensions situated in or near the same building.

Line limits between internal extensions with 6V local signalling allow for loop resistances of up to 1000 ohms, this being equivalent, for example, to approximately 200ft (61m) of 6.5lb/mile (0.5mm) conductor. Between an external extension and the main exchange the loop resistance may be up to 1000 ohms.

Additional Features

  • Tropical finish with coils suitably  impregnated and metal parts specially finished.

  • Handset amplifier for users with impaired hearing. Gives finger-tip control of the level of reception (see catalogue sheet No. 7150).

  • Operator recall enabling the user engaged on an exchange call to recall the PBX operator for enquiry or call-transfer purposes.

  • Conversion parts to equip C.B. instruments for auto working and table instruments for wall mounting.

Power Requirements
When required, local power supplies for signalling and transmission can be derived from a 6V dry battery, or a 6V, 1A power unit connected to the mains supply (100 to 110V or 200 to 250V a.c.).

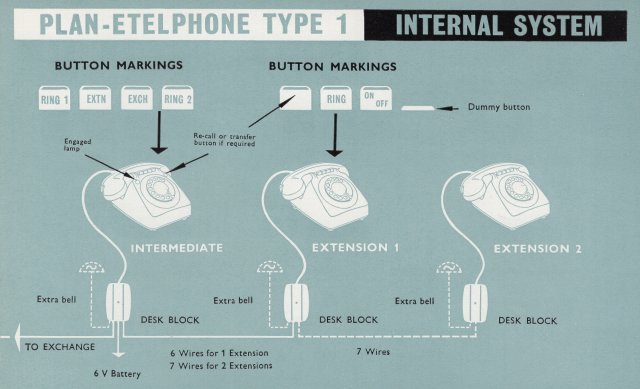

PLAN-ETELPHONE TYPE 1
AN INTERMEDIATE TELEPHONE
WITH EXTENSION SWITCHING
AND INTERNAL EXTENSIONS
HAVING DIRECT EXCHANGE
LINE ACCESS

This Plan system is suitable for up to two executives served by one exchange line and requiring incoming calls to be filtered at an intermediate (secretarial) point. Basically similar to BPO plans 105 and 105A, it provides two significant service features: (a) the automatic holding of exchange calls at the secretary's intermediate telephone and (b) direct access to the exchange line from the executives' extension telephones, dispensing with the need for secretarial assistance.

The intermediate (secretary's) telephone is simple to operate. It incorporates four press buttons. The outer two, designated RING 1 and RING 2, are used for selective calling of extensions; the inner two, designated EXCH and EXTN, are for switching functions. Exchange calls are answered by pressing the EXCH button and then offered to either extension as required by first pressing the EXTN button, followed by the appropriate RING button.

The exchange call is held automatically while the call is offered, and is transferred automatically when the handset at the intermediate telephone is replaced. Should the extension user not accept the call, the EXCH button is re-pressed to permit return to the exchange line.

If the intermediate instrument is temporarily unattended, an exchange call can be signalled at either extension on manual release of the bell on/off press button, and the call accepted. During exchange calls at either extension, the 'engaged' lamp glows at the intermediate.

Main Facilities
Intermediate to exchange with buzzer available for extension calls. Extensions cannot overhear.
Intermediate to extension with bell across the exchange line. The secretary at the intermediate can ring and speak to either extension.
Information call from intermediate to extension while the exchange line is held. The exchange caller cannot overhear.
Transfer of exchange calls from the holding circuit to the wanted extension.
Direct access to the exchange line at both extensions when all buttons at the intermediate are normal.

Additional Facilities
Secrecy on extension-to-exchange calls by simple strap adjustment. If non-secret working is imposed, the intermediate (secretary) may join the conversation.
Intermediate recall permits either extension user to recall the intermediate during an exchange call. The 'engaged' lamp glows at the intermediate when either extension engages the exchange line.
Selective calling from the intermediate to either extension, if there are two.
Direct calling from either extension to the intermediate.
Extension-to-exchange calls made Direct without switching through at the intermediate.
Exchange calls received at either extension when the intermediate is unattended.

Power and cabling
A 6V battery or power unit is required at the intermediate instrument.
Cable supplied as required; 6-way for installations with one extension and 7-way for installations with two extensions.

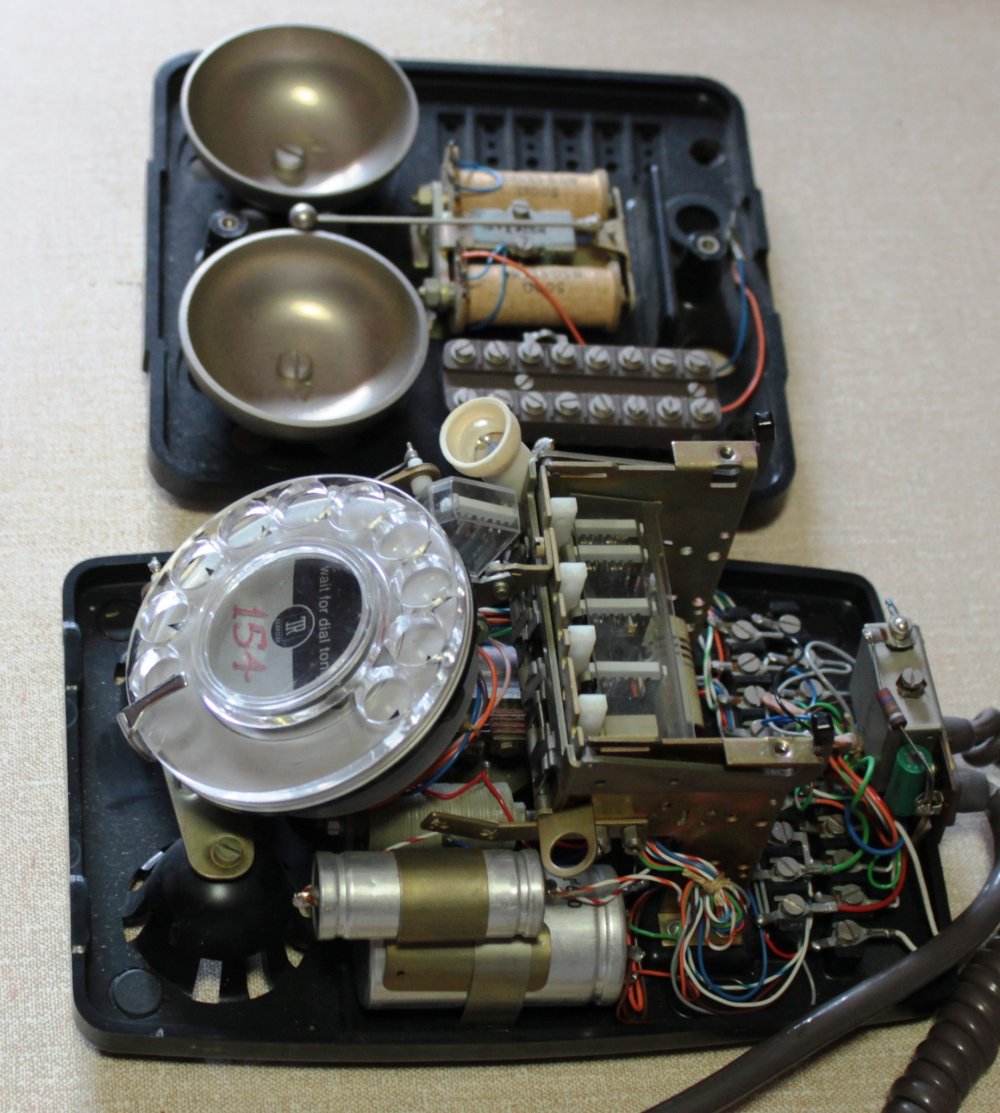

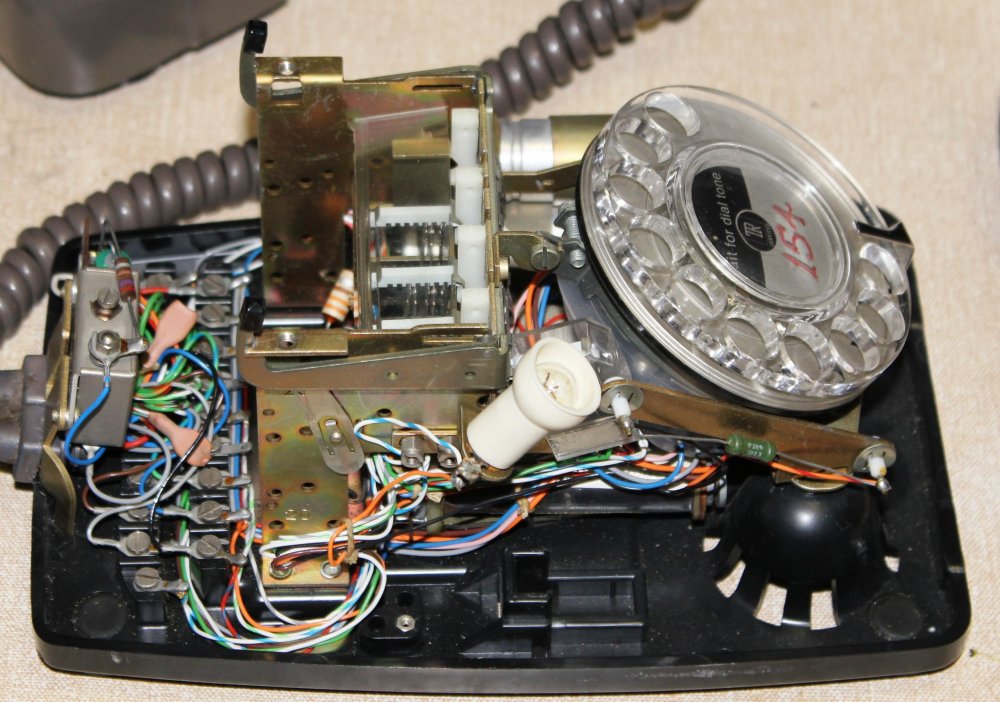

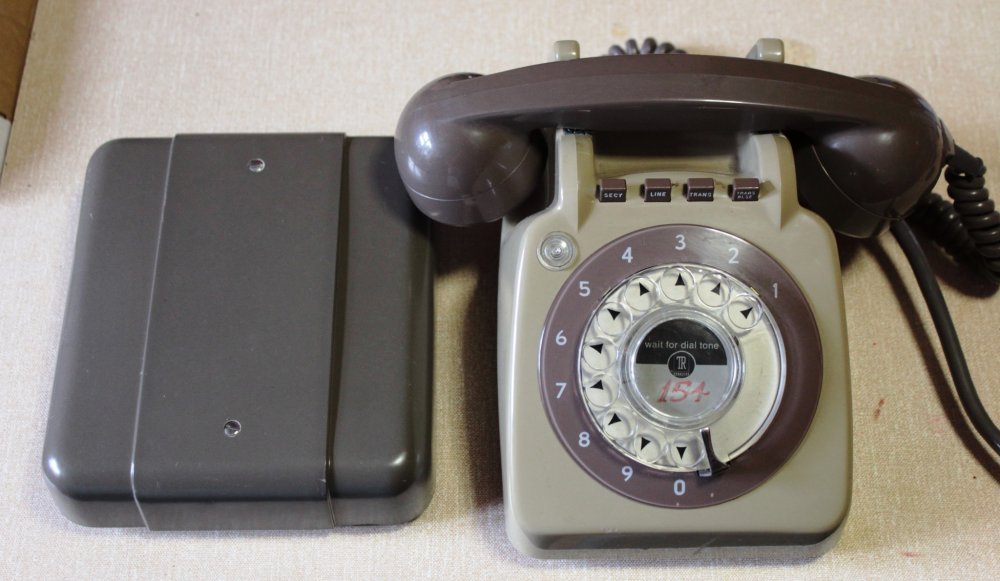

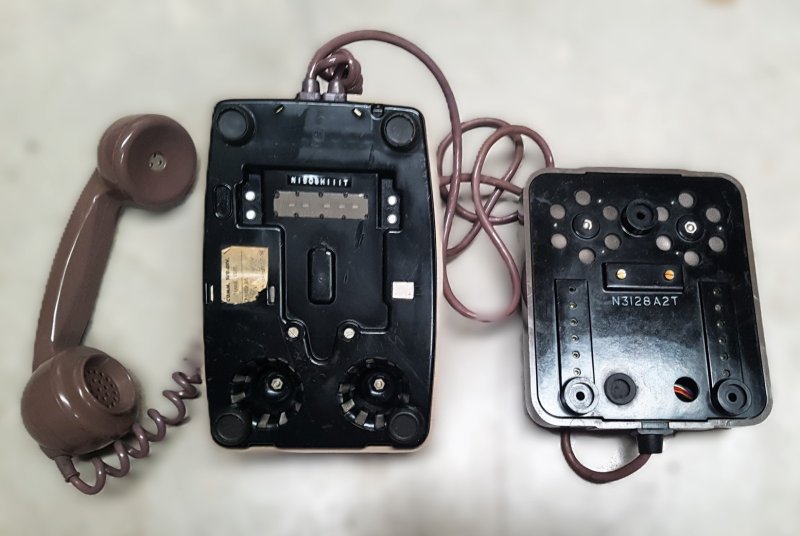

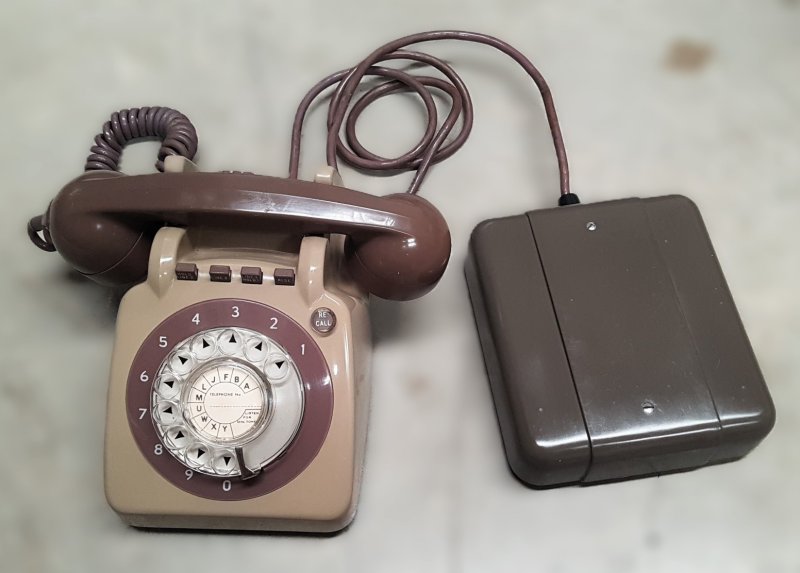

Used a model N1906F6T.

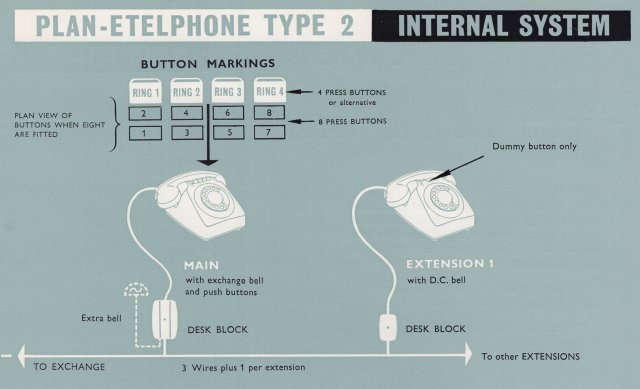

PLAN-ETELPHONE TYPE 2
A MAIN TELEPHONE AND
PARALLEL EXTENSIONS
HAVING DIRECT EXCHANGE
LINE ACCESS

This is a simple system, suitable when one exchange line is required to serve several internal extensions.

All exchange calls are answered at the main telephone and passed to the required extension.

The main telephone is available with either 4 or 8 press buttons and an AC bell.

The extension telephones incorporate a DC bell.





Plan-Etelphone Type 3
External System
AN INTERMEDIATE TELEPHONE
WITH EXTENSION SWITCHING
AND AN EXTERNAL EXTENSION

This Plan system is suitable for users with one exchange line serving two locations some distance apart; for example, a shop and associated warehouse. It consists of an intermediate and an external-extension telephone connected by a 2-wire line. Bothway signalling between intermediate and extension is by in-built transistor ringing units.

The loop resistance between the external extension and tie main exchange can be up to 1000 ohms. At the intermediate telephone, four locking press buttons are provided for the following switching and signalling functions:-

  • Intermediate to exchange with a.c. buzzer across the extension line.

  • Extension cannot overhear.

  • Intermediate to extension with a.c. bell across the exchange line.

  • Information call with the exchange line held. The exchange caller cannot overhear.

  • Extension to exchange direct. Calls can be secret or non-secret from the intermediate.

  • Incoming exchange calls are normally answered at the intermediate, and are held when offered to the extension. The call is transferred automatically when the EXTN-EXCH button at the intermediate telephone is operated. Should the extension user not accept the call, the intermediate user may return to the exchange line by pressing the EXCH button. During extension-to-exchange calls the 'engaged' lamp glows at the intermediate.

Facilities
Intermediate to exchange with a.c. buzzer across the extension line. The extension cannot overhear.
Intermediate to extension with a.c. bell across the exchange line.
Information call from intermediate to extension, with the exchange line held.
Extension to exchange direct when the extension handset is in position, the intermediate-telephone bell is connected across the exchange line to signal incoming exchange or extension calls.
Transfer of exchange calls from the intermediate to the extension.
Return to the exchange line if not required to transfer an exchange call after an information call.
Secrecy on extension-to-exchange calls by strapping adjustments.
Engaged lamp signal given at the intermediate during extension-to-exchange calls.
Ring extension condition applied by over pressing the EXTN switching button, thus avoiding the need for a separate button.
PBX recall or transfer button provided if required.

Power and cabling
A 6V battery or power unit is required at the intermediate and extension instruments.
A 2-wire cable is necessary between the intermediate and extension telephone.

Equipment

Equipment   Code No.
Telephone for both systems   N1906
PSU (6 volt) N23801B

See also N1906D - Secretarial System Mk VI

Taken from the Plessey Telephone Catalogue (1971)
Publication No. 7148


According to the code book there were 16 types of N1906 and to make matters worse, there were variations on these.

Telephone used on Plans Types 1, 2, 3 and 15 were produced in the colours: Grey, Black and Ivory and were shipped worldwide.

Wiring and description

All types first introduced in 1960.

Ericsson No. Type Colour
N1906D41T AUTO Terminal - Communications systems (CS) - 2 lamps GREY
N1906H15T AUTO BLACK
N1906H16T AUTO IVORY
N1906H17T AUTO RED
N1906H18T AUTO YELLOW
N1906H19T AUTO BLUE
N1906H20T AUTO GREY
N1906H21T AUTO GREEN
