Australian Post Office
Telephone No. 336CBT
Telephones, Magneto, Table

The Telephone No. 336CBT was a CB model fitted with a generator as well.  This was used as an extension phone off an extension switch.  The magneto was used to signal back to the main station.

This telephone was made by British Ericsson, their model N1326K.

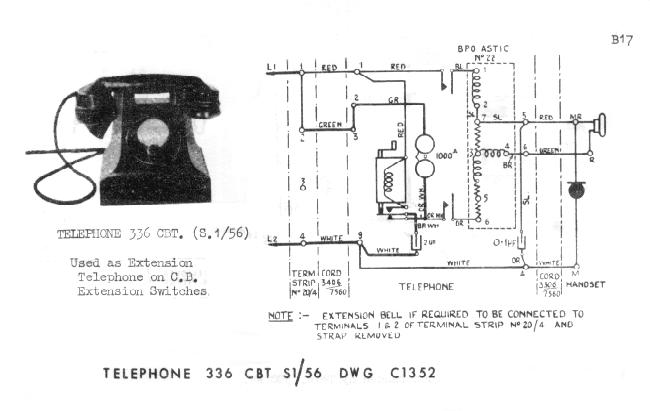

Australian Circuit diagram C1352.

Taken from Bob's Old Phones
